Product family » Alma
  • Indicator lighting
    • 2 product(s) in marker-lighting
1406
Marker-light for pathways 360° This option does match with your criteria
1406M
Marker-light for pathways 210° This option does match with your criteria
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

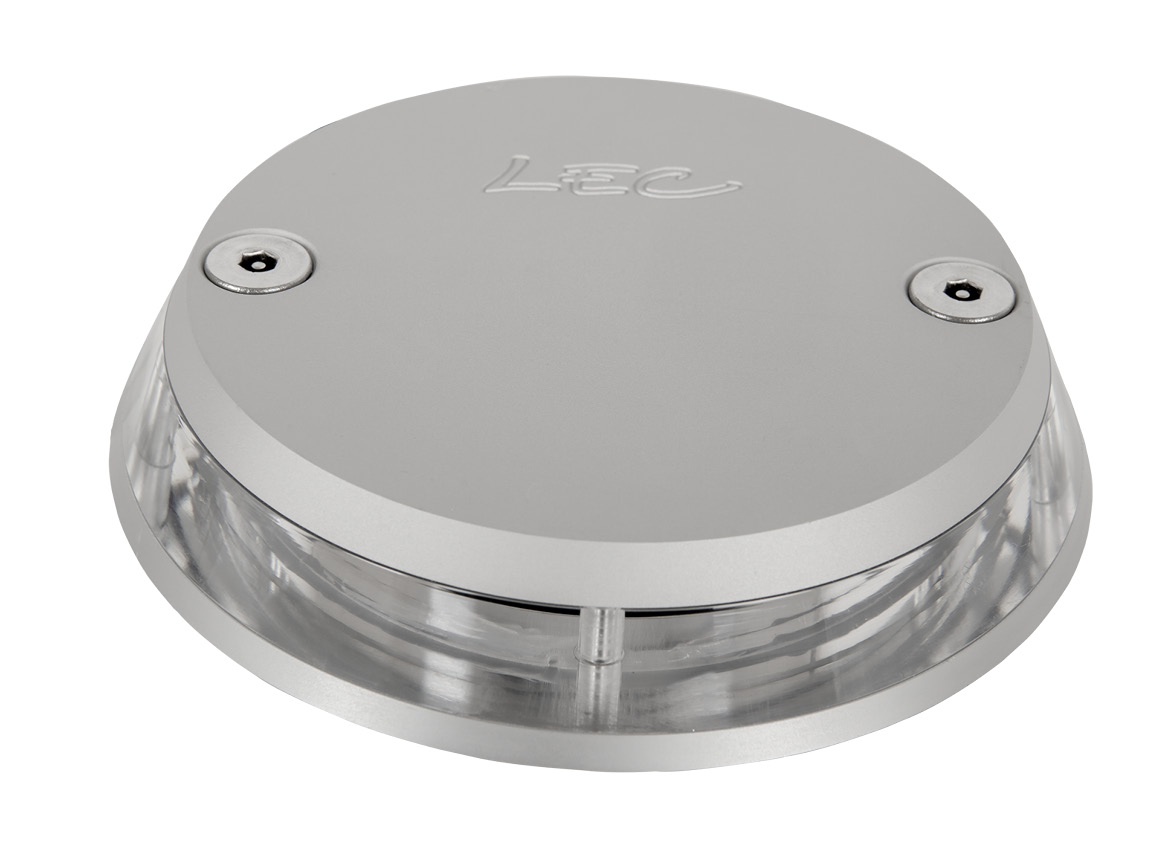

1406 - Alma (Marker-lighting)

Application

  • Indicator lighting
    • Marker-lighting

Mounting type

  • Wall lights
  • Ground recessed fittings

Features

  • Weight
    780 gr

Options of luminous effects

  • faisceau incliné bas
  • Non adjustable
  • Transparent flat window

Power supply - Control

  • Cable length
    1 m
  • 24V-Non dimmable 24V
    Integrated
    24V-Non dimmable
    ,
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI
  • 230V-Non dimmable 230V
    Integrated
    230V-Non dimmable
    ,
    230V-0/10V

Material

  • Anodised glazed aluminium
  • Vandalism-proof organic glass

Mechanical strength - Waterproofness

  • Protrusion which is an obstacle for 2-wheels vehicles and pedestrians. The unit should be permanently lit to draw attention to the obstacle.
  • Withstands random all vehicles traffic
  • Resists impacts up to IK10 20J
    IK10 20J
  • IP67 Tight for temporary immersion
    67

Downloads

Download Standard product datasheet (pdf)
Download EU Declaration of conformity
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Reset filters
Access the file
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images

360° uniform beam angle (0 to -20°).

  • Colourless anodised machined aluminium body
  • Vandalproof organic glass window
  • 316L Stainless steel screws
  • Attaches directly to roadway or to recess plate (not available in 230V version)
  • Supports occasional road traffic by any type of vehicle
see more
