Product family » Clem-in

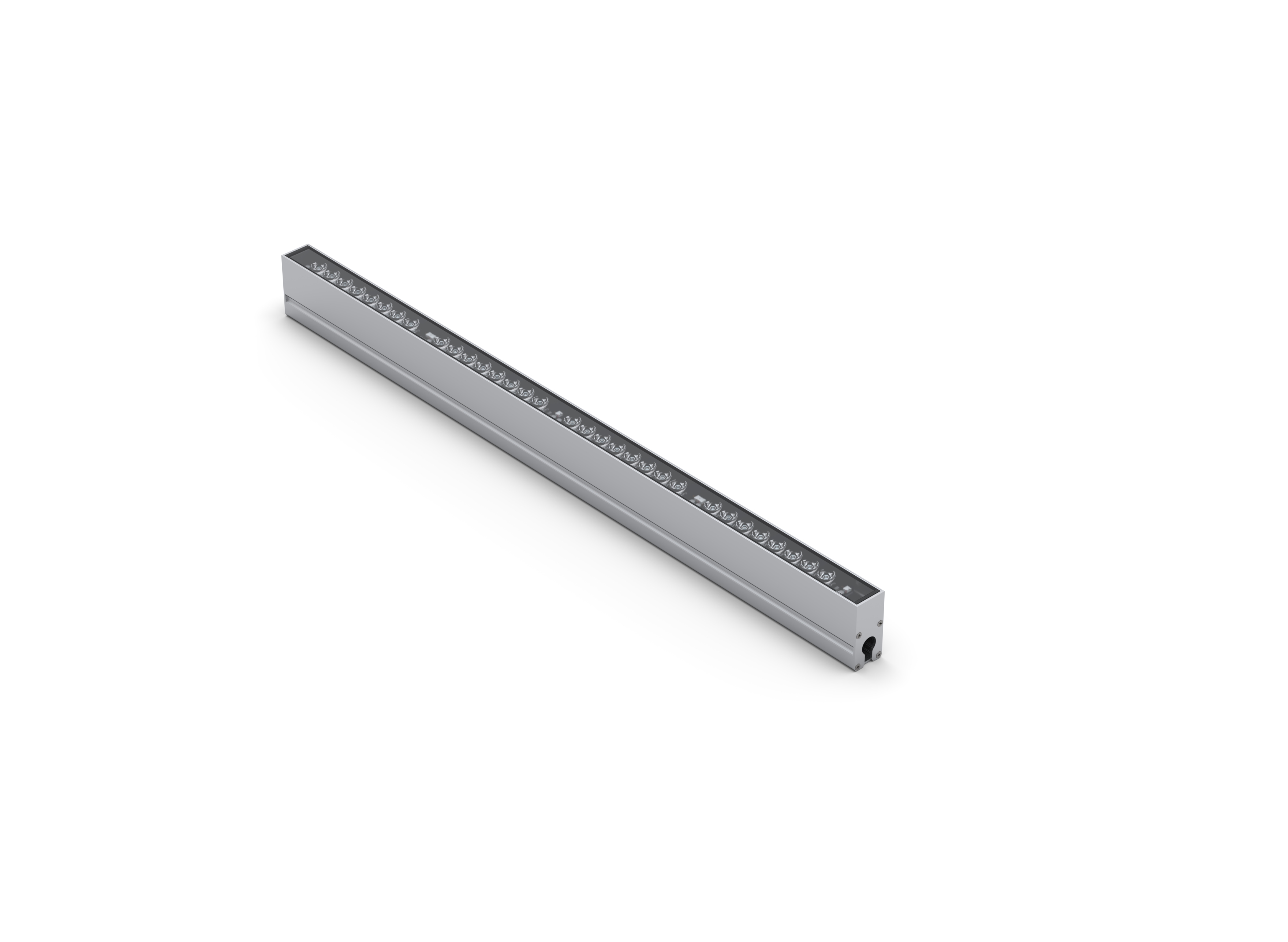

Linear recessed projector for public spaces.
Orderable in 4 lengths, it allows individual or continuous line installations.
With the very extensive asymmetrical optics, homogeneous lighting is obtained even for a grazing installation.
Anti-vandalism installation by clipping (no screw).
-
Lighting
4 product(s) in lighting
5753 - Clem-in New
Application
-
Lighting
Outdoor lighting
- This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K) Standard flux :2676 lm
Mounting type
-
Ground flush recessed fittings
-
Ground recessed fittings
Features
-
Weight
750 gr
Options of luminous effects
-
RGBW option
-
Non adjustable
-
Beam with various openings
-
Transparent flat window
-
Colour control system (optional)
Power supply - Control
-
Cable length
1 m -
24V-PWM
Integrated24V-PWMRemote24V-0/10V,24V-DMX,24V-DALI
Material
-
Anodised glazed aluminium
-
Vandalism-proof organic glass
Mechanical strength - Waterproofness
Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.
-
Electricity consumption
-
Output
-
Maximum use temperature
-
Contact temperature
Product configurator
Optic options available for the product: 5753 Clem-in
Your search criteria :
Number of LEDs :
Type of LEDs :
Colour :
Select the tab of your choice and click on your chosen optic, then confirm.

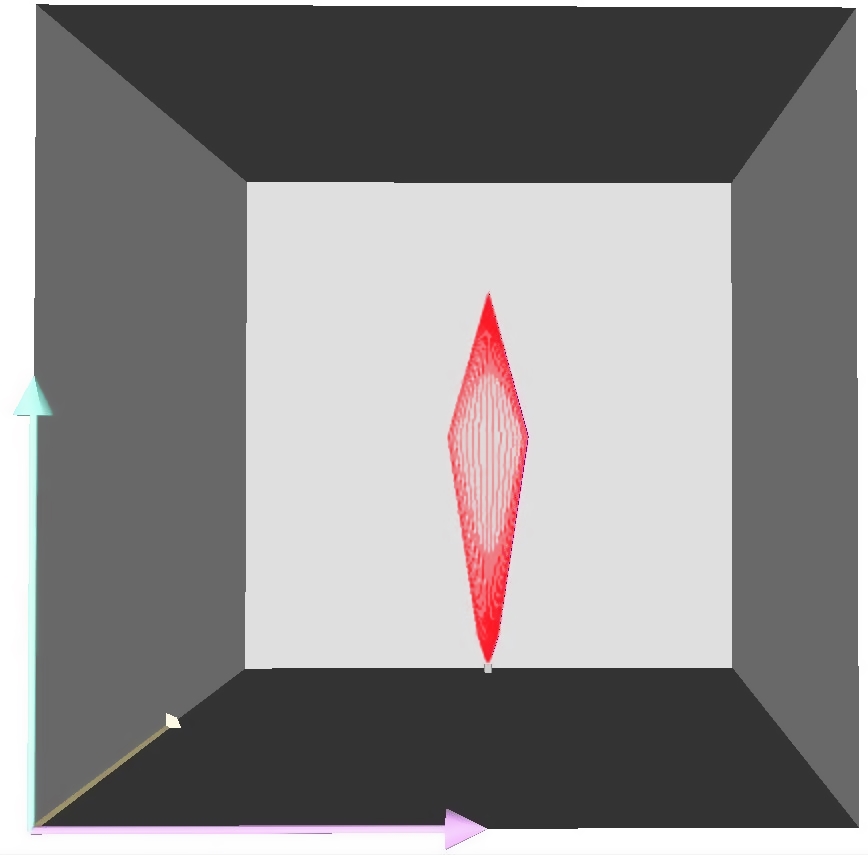

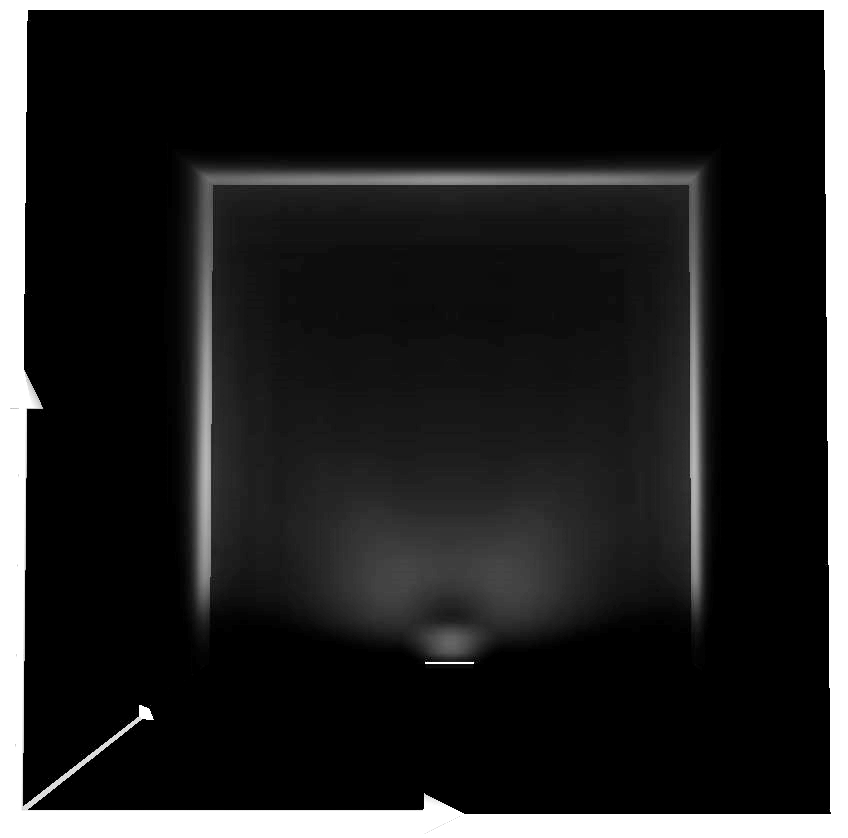

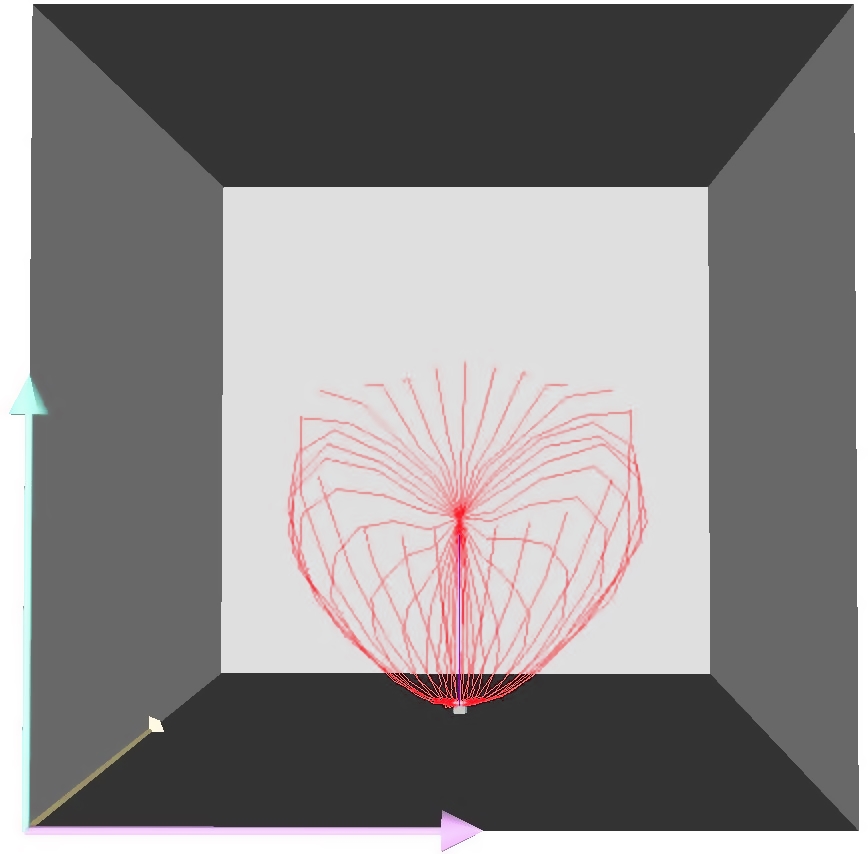

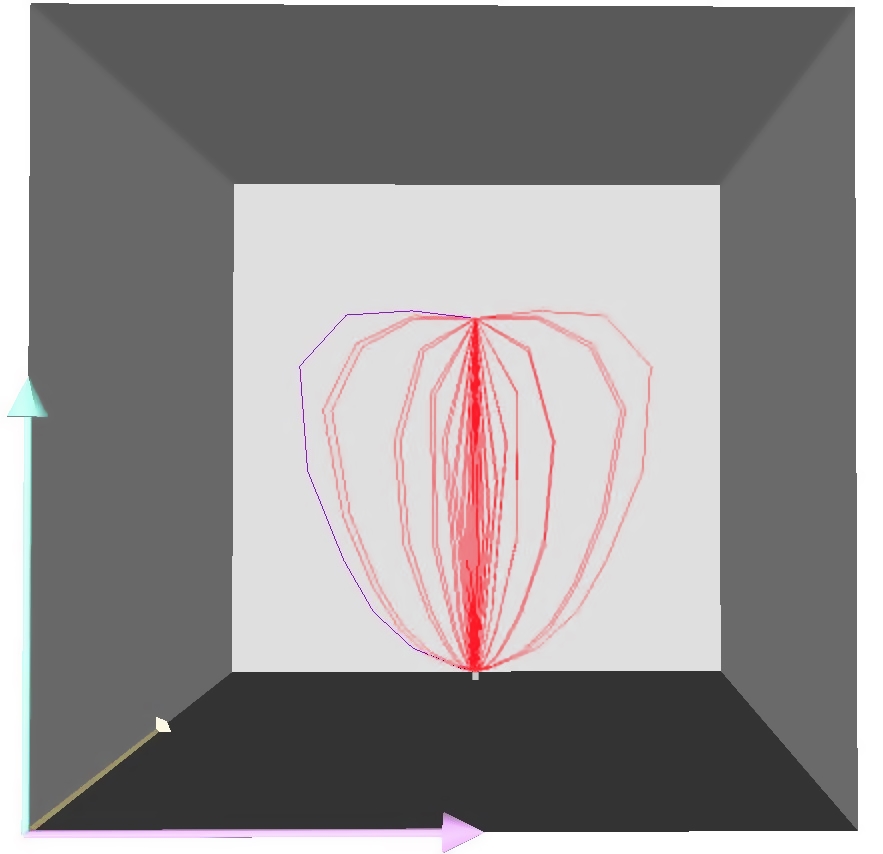

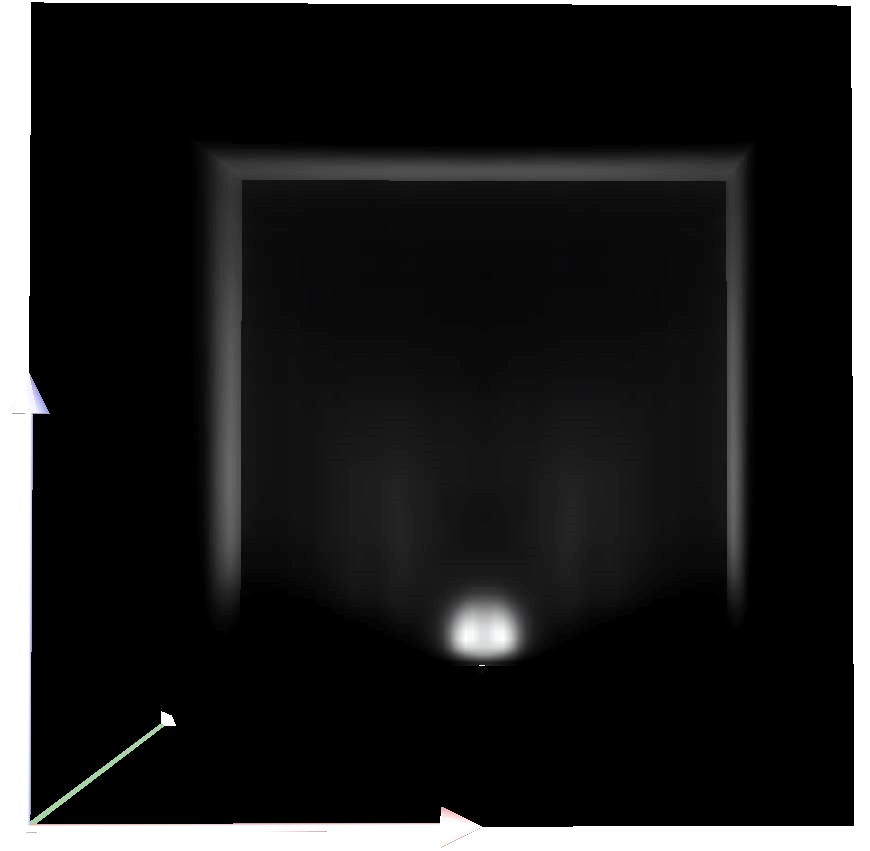

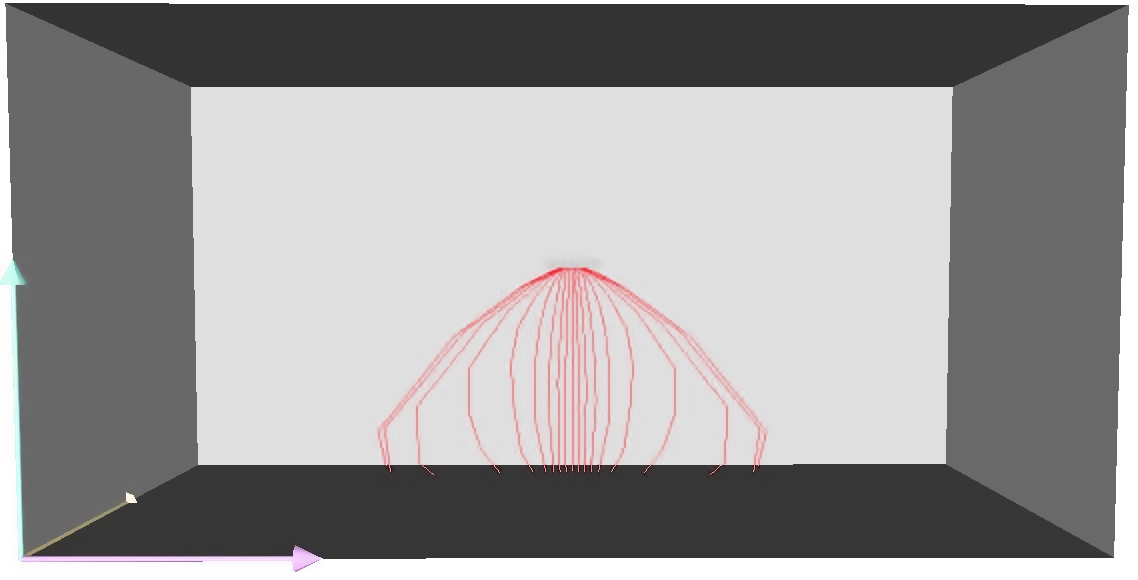

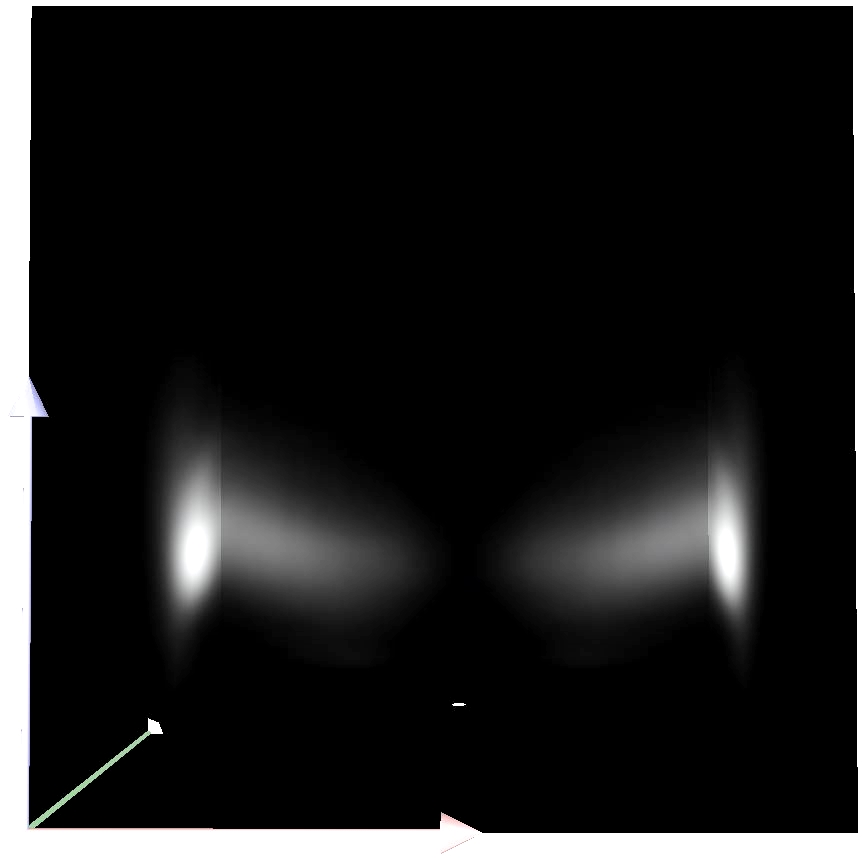

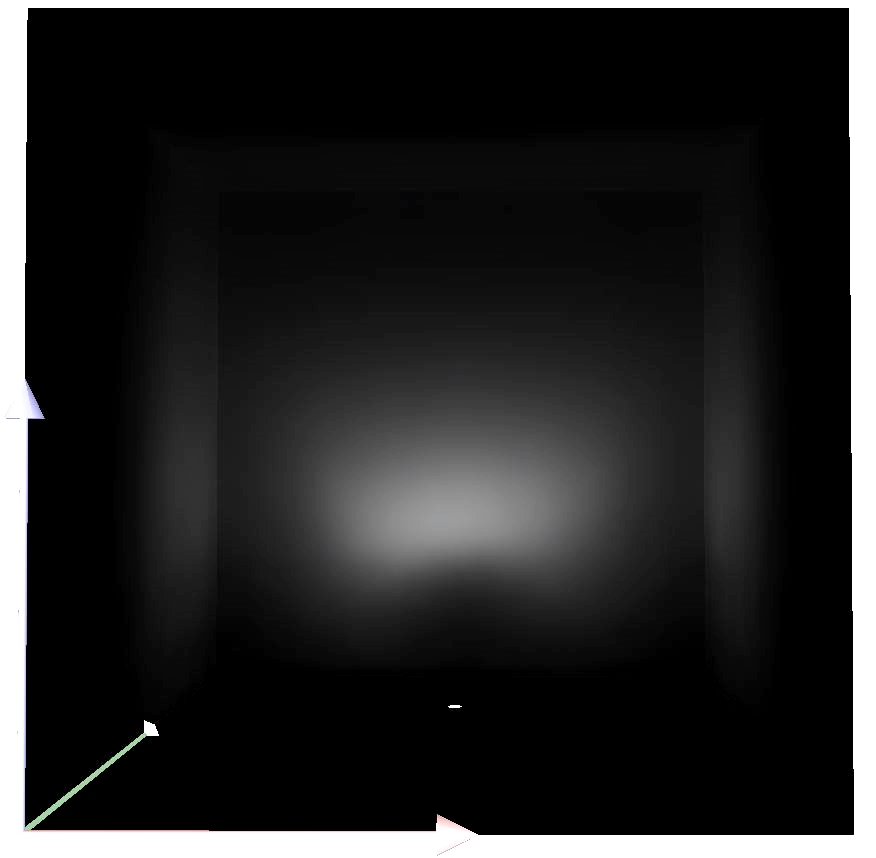

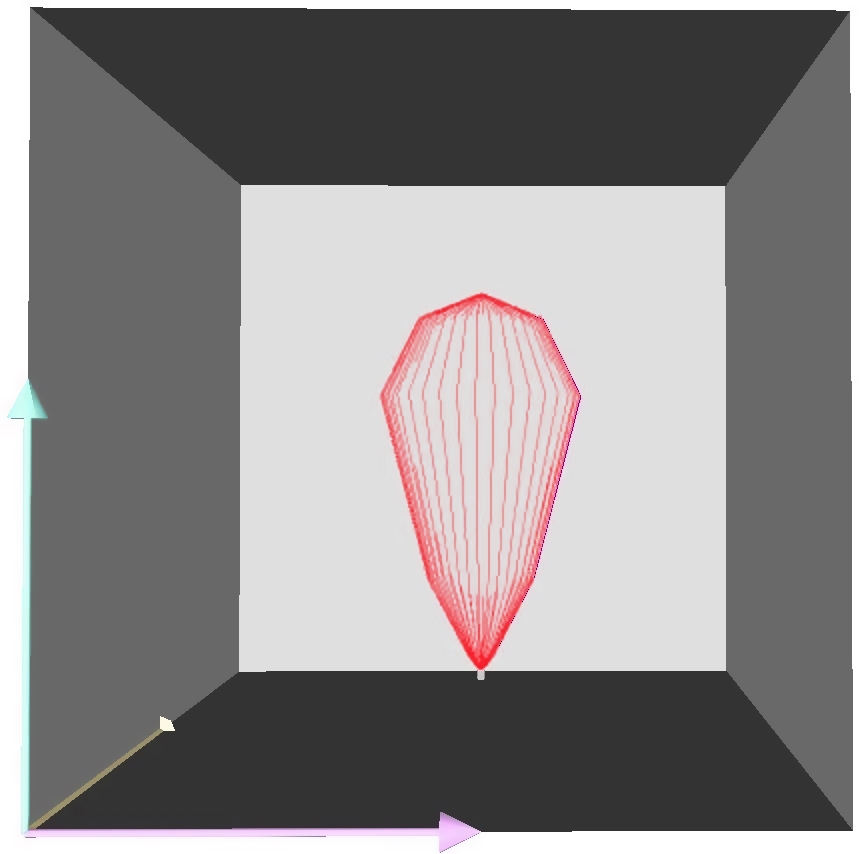

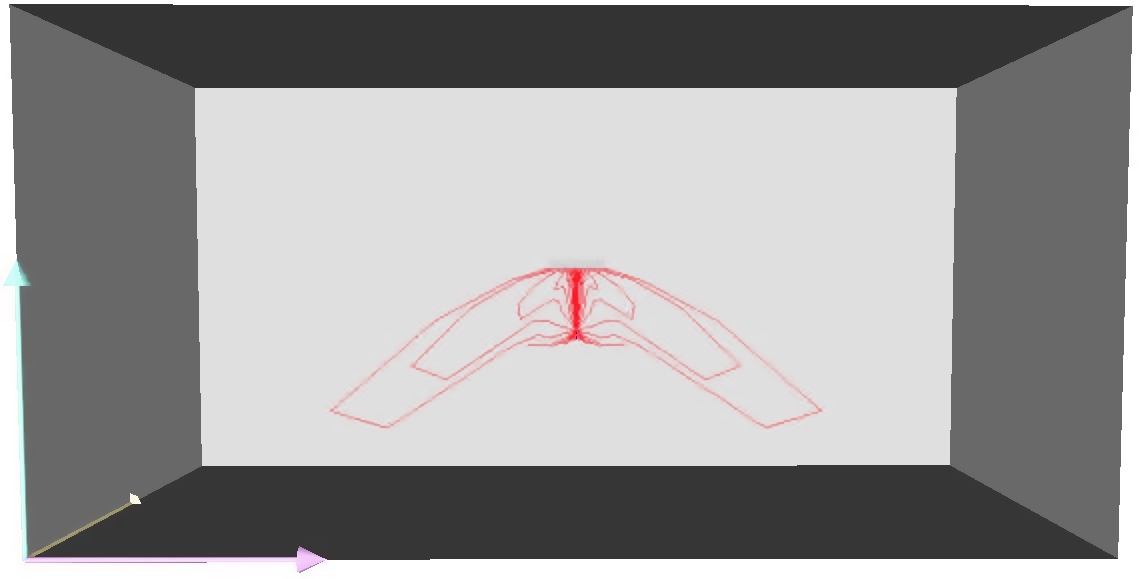

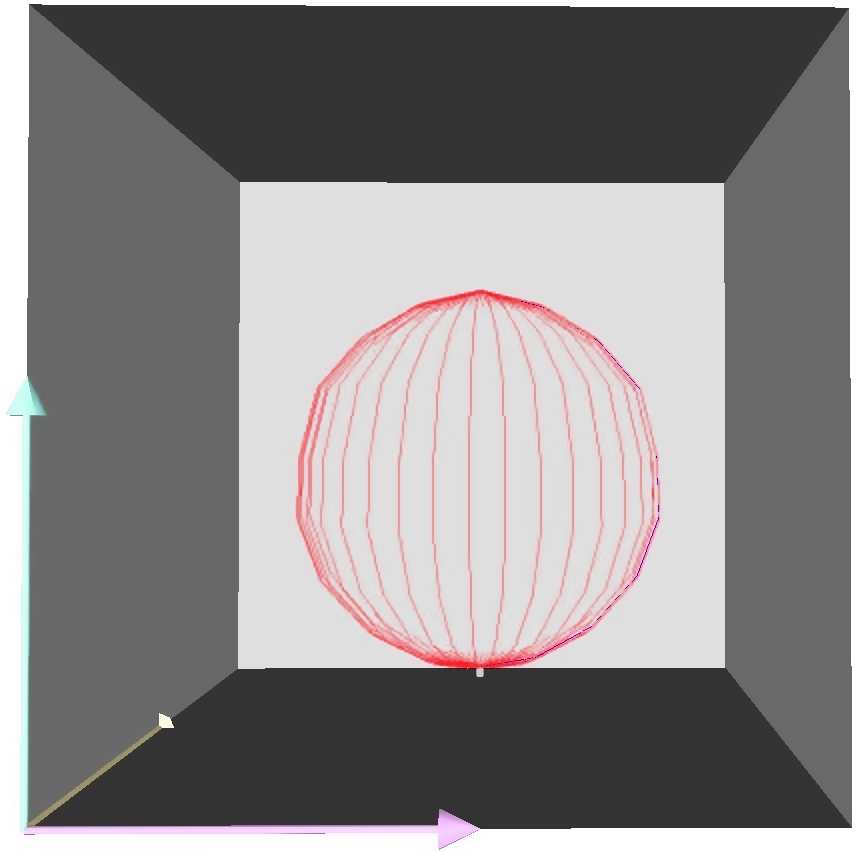

Access the photometric data

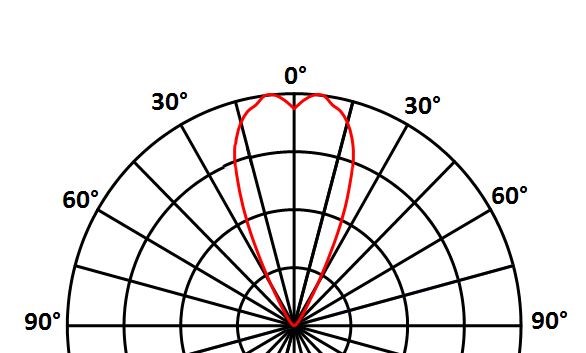

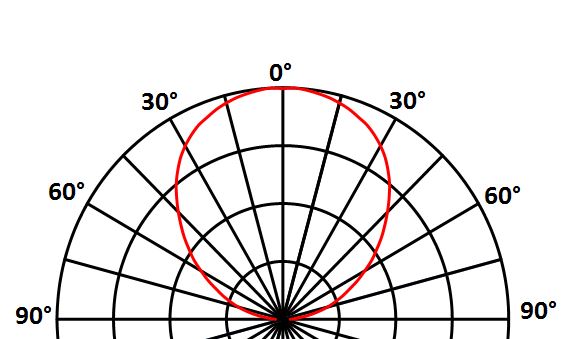

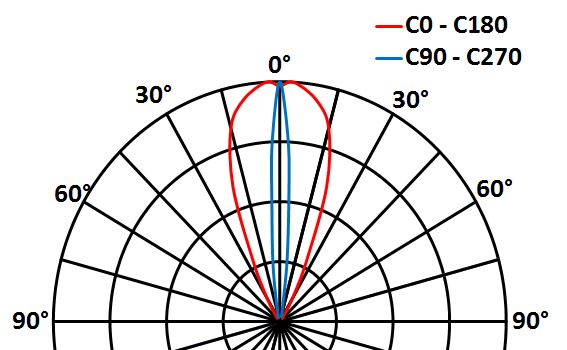

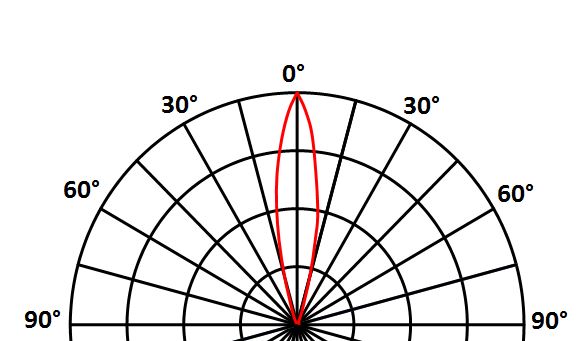

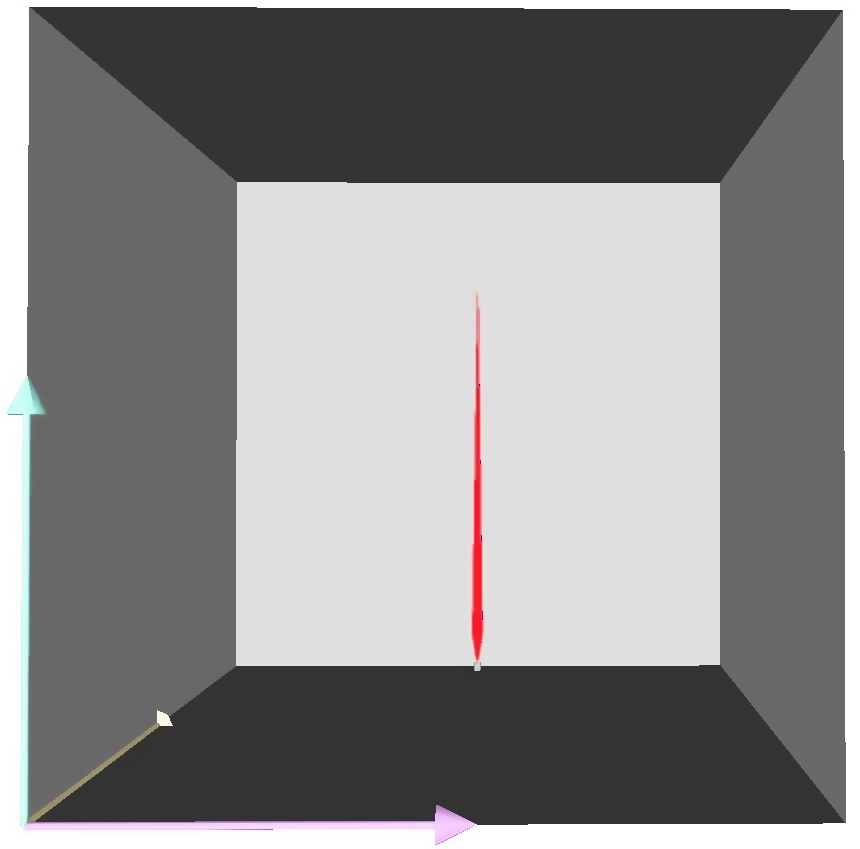

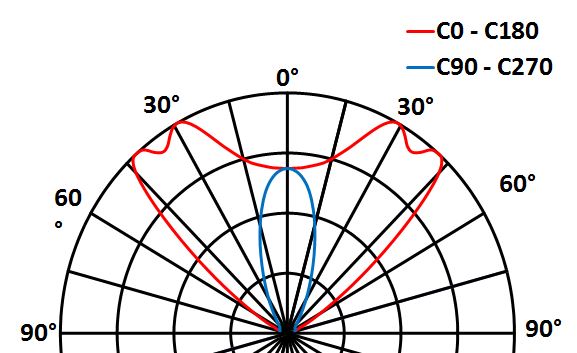

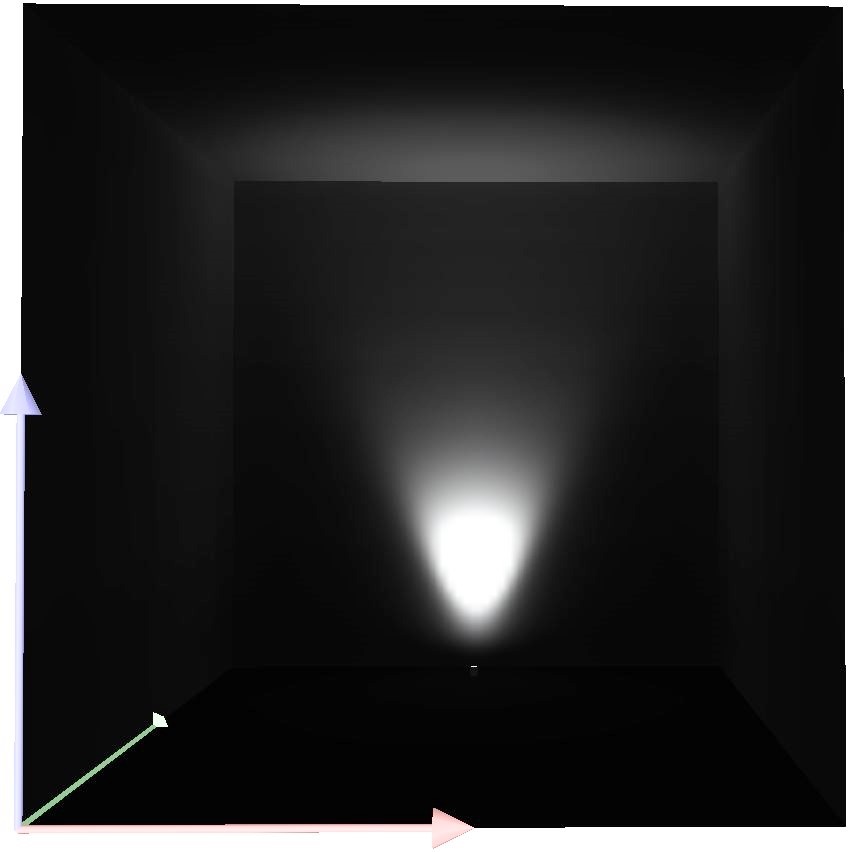

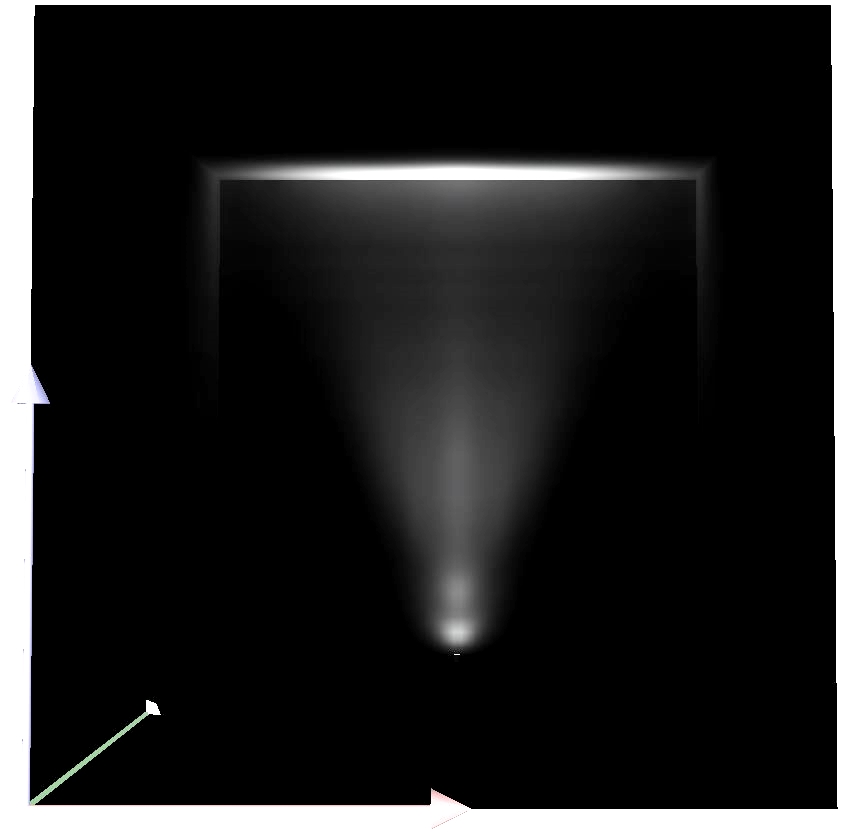

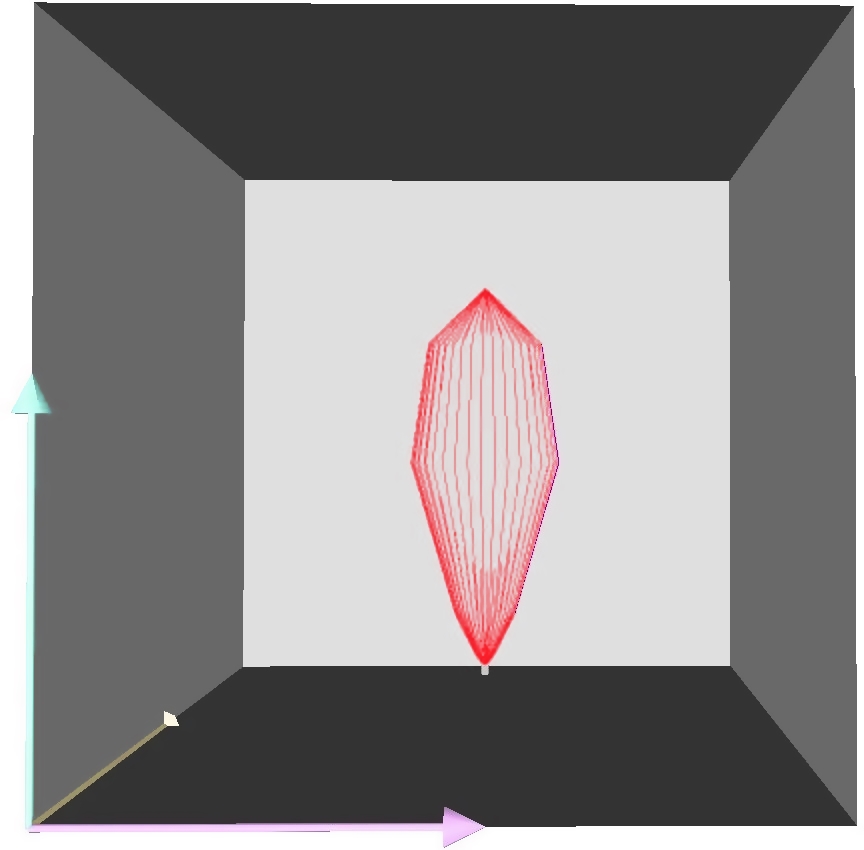

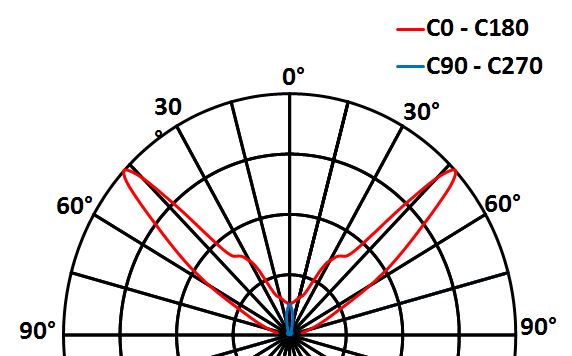

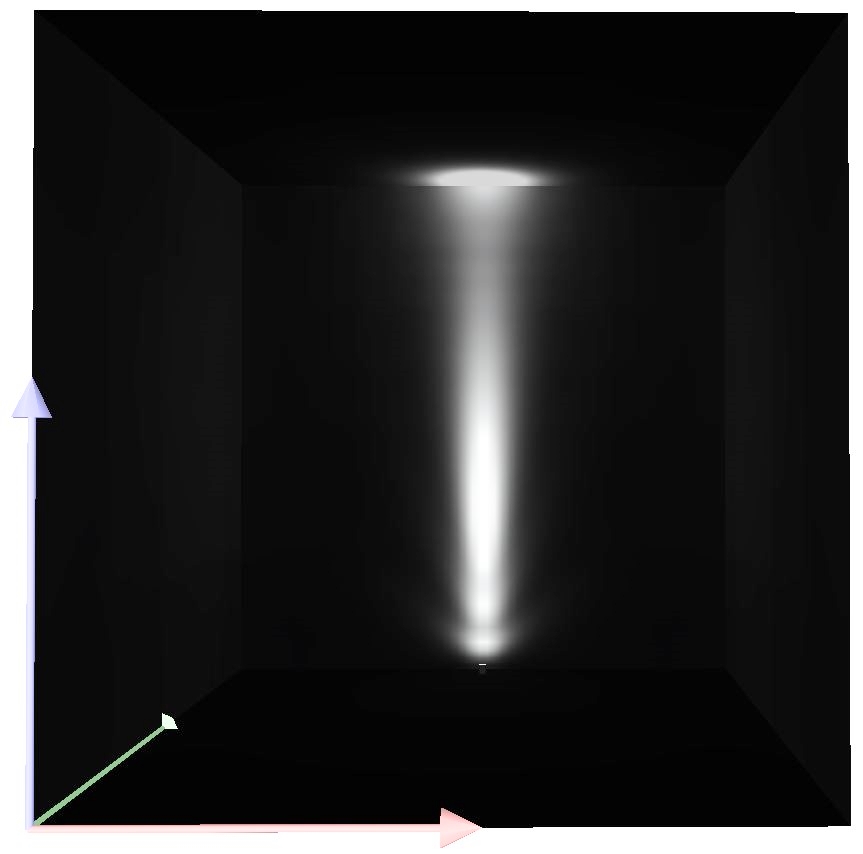

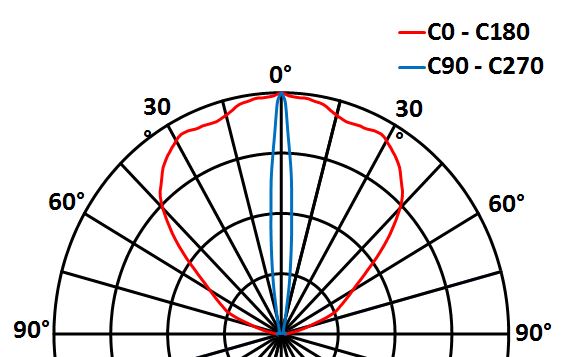

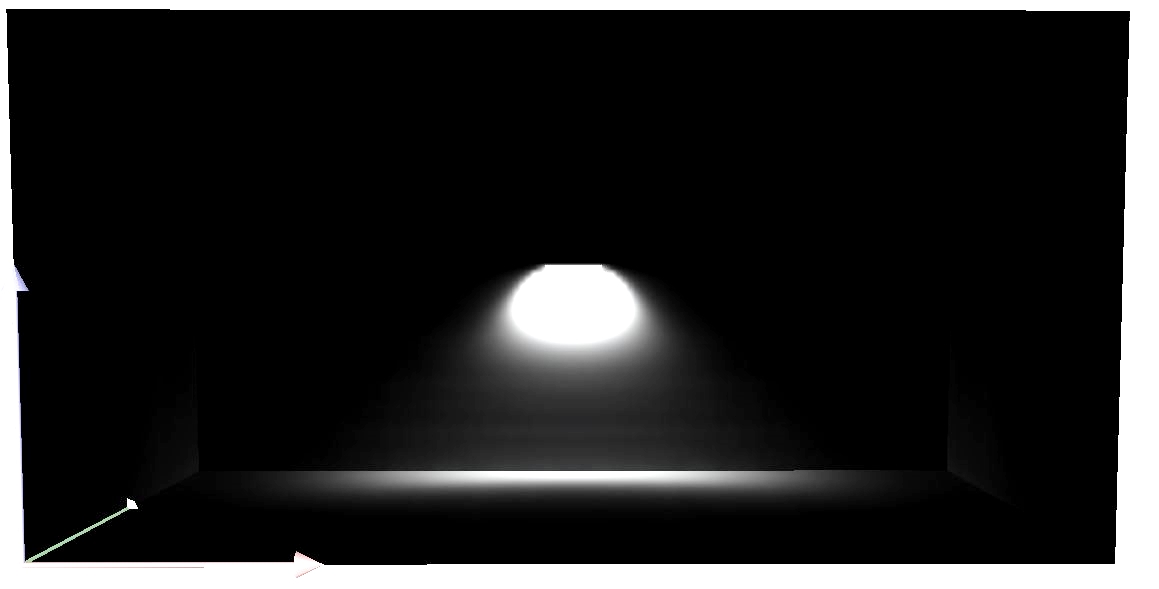

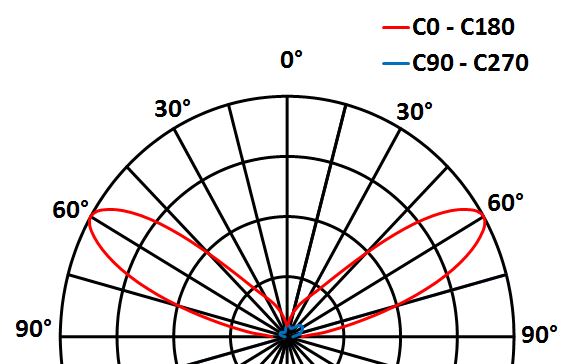

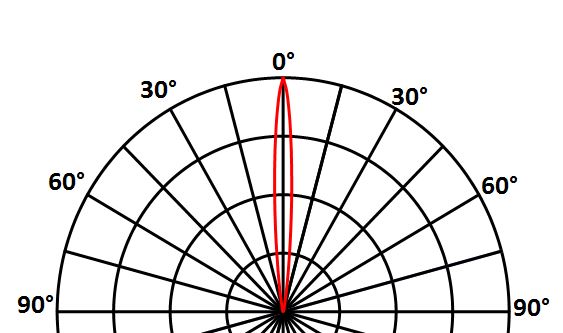

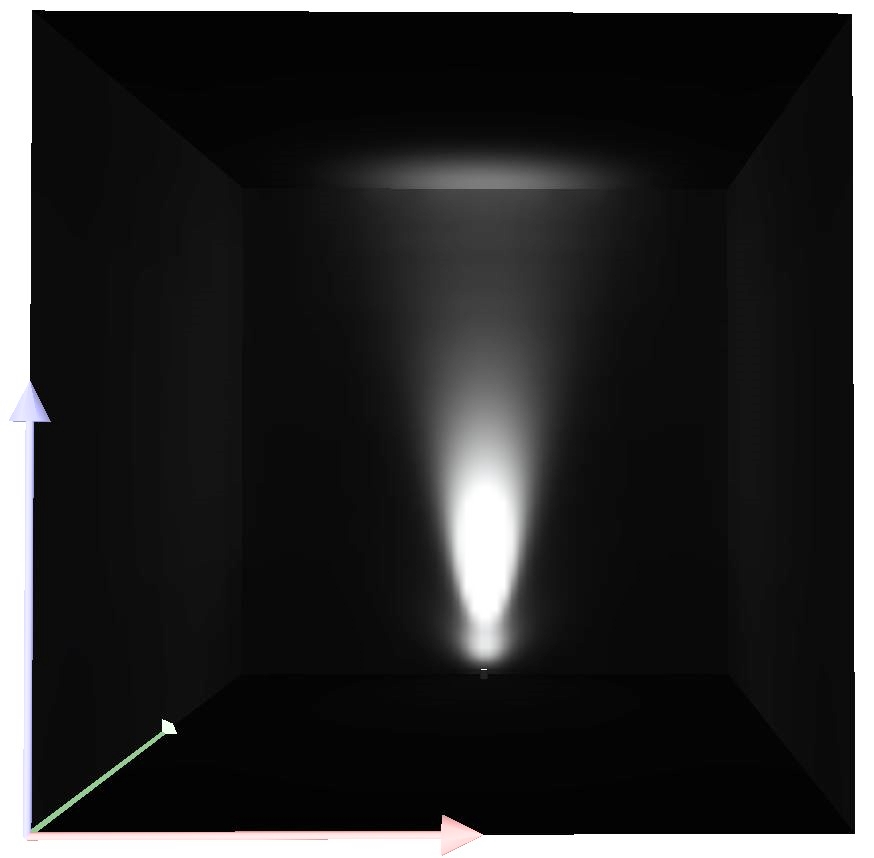

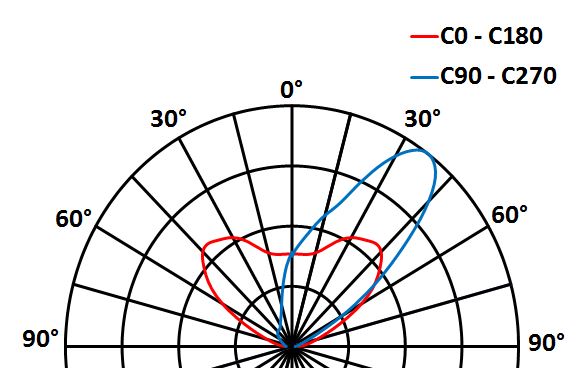

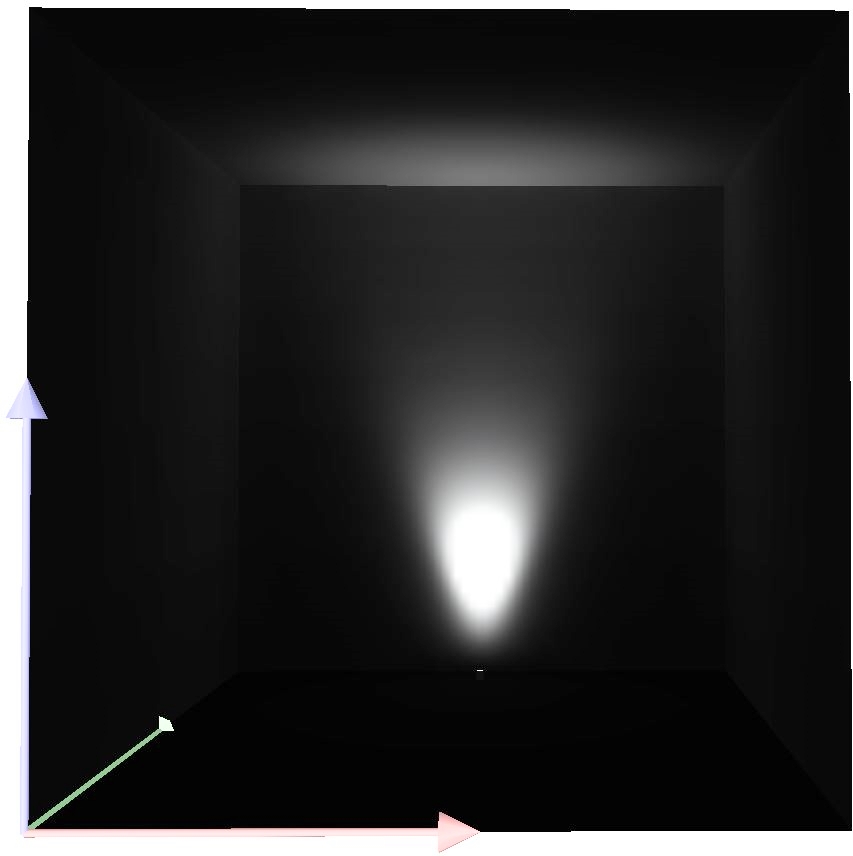

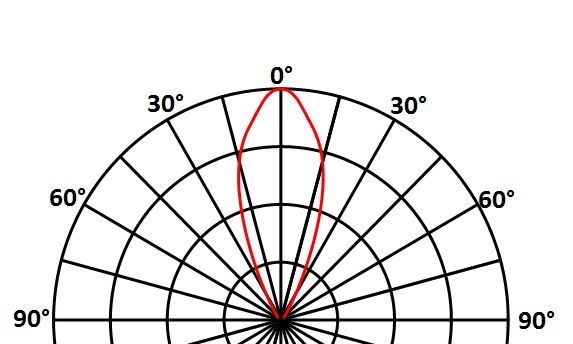

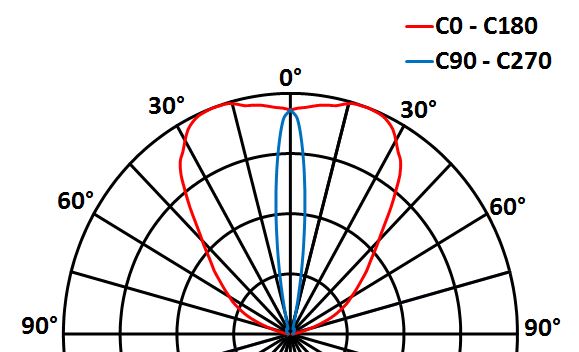

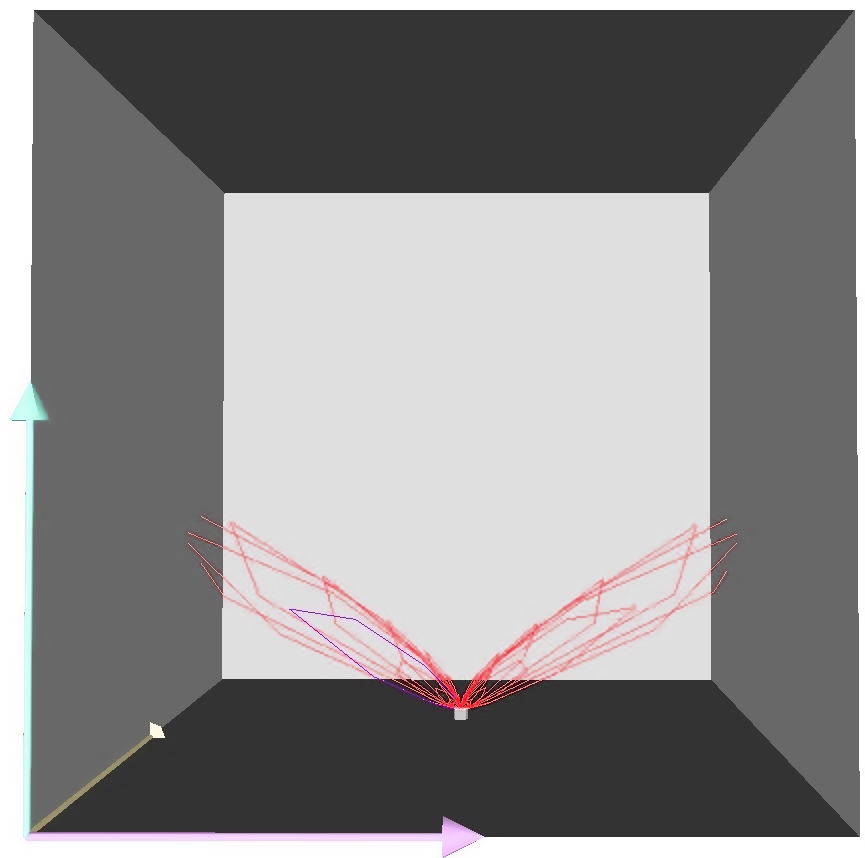

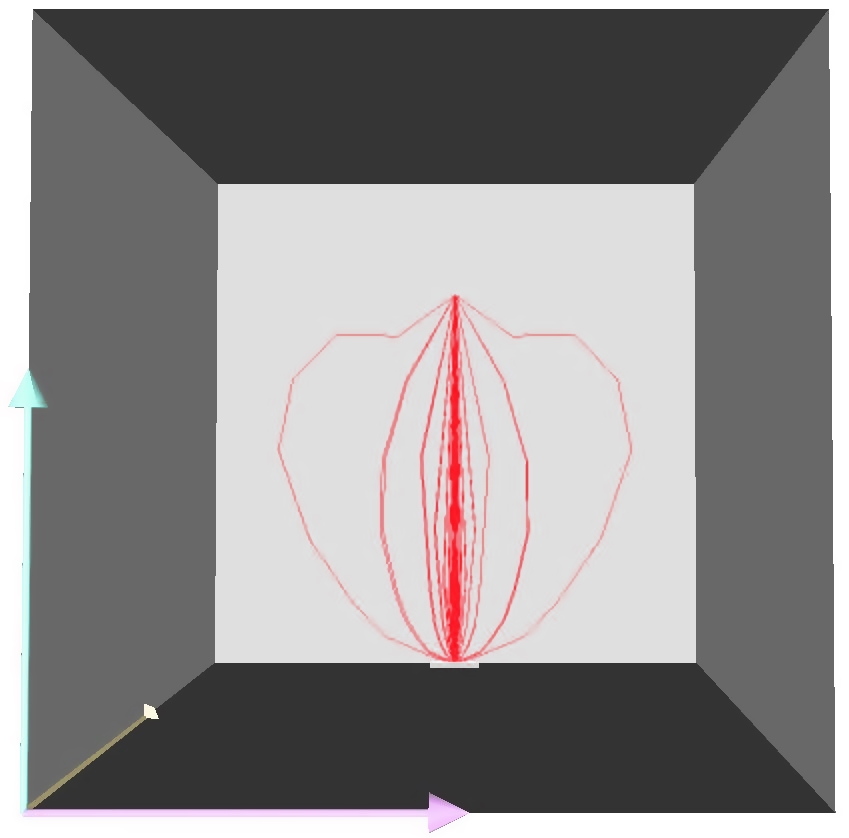

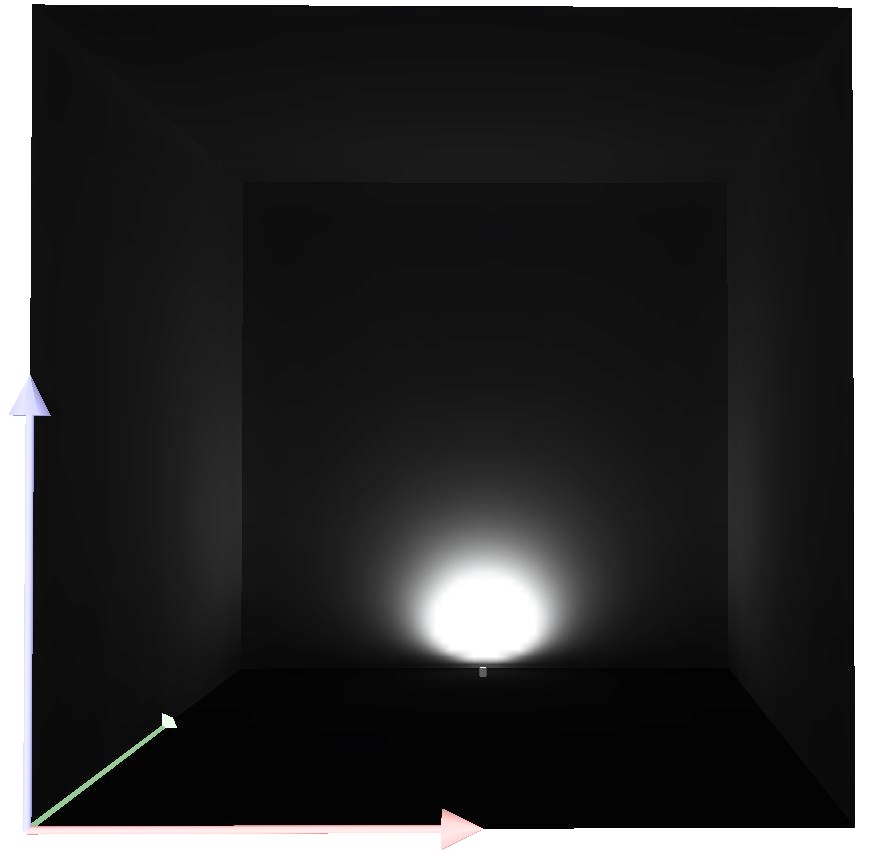

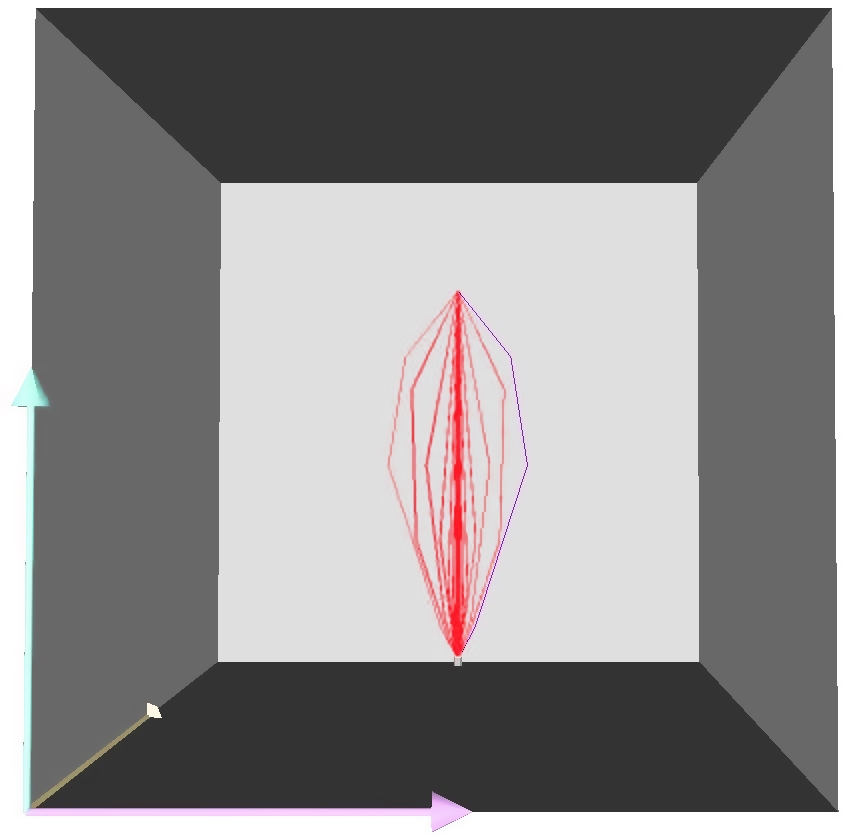

Photometric data
Optic options available for the product: 5753 Clem-in
Your search criteria :
Number of LEDs :
Type of LEDs :
Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France.
Length with recess = 1020mm
Vandal-proof organic glass profile
Clear anodized aluminum sheath
Without protrusion
Cable outlet on the underside
12 LEDs 700mA controlled in PWM
Four-color option possible: 4x8 350mA LEDs controlled in PWM
