Product family » Clem-in

Linear recessed projector for public spaces.

Orderable in 4 lengths, it allows individual or continuous line installations.
With the very extensive asymmetrical optics, homogeneous lighting is obtained even for a grazing installation.
Anti-vandalism installation by clipping (no screw).

Read more
  • Lighting
    • 4 product(s) in lighting
5751
L=1980 mm This option does match with your criteria
5752
L=1500 mm This option does match with your criteria
5753
L=1020 mm This option does match with your criteria
5754
L=540 mm This option does match with your criteria
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

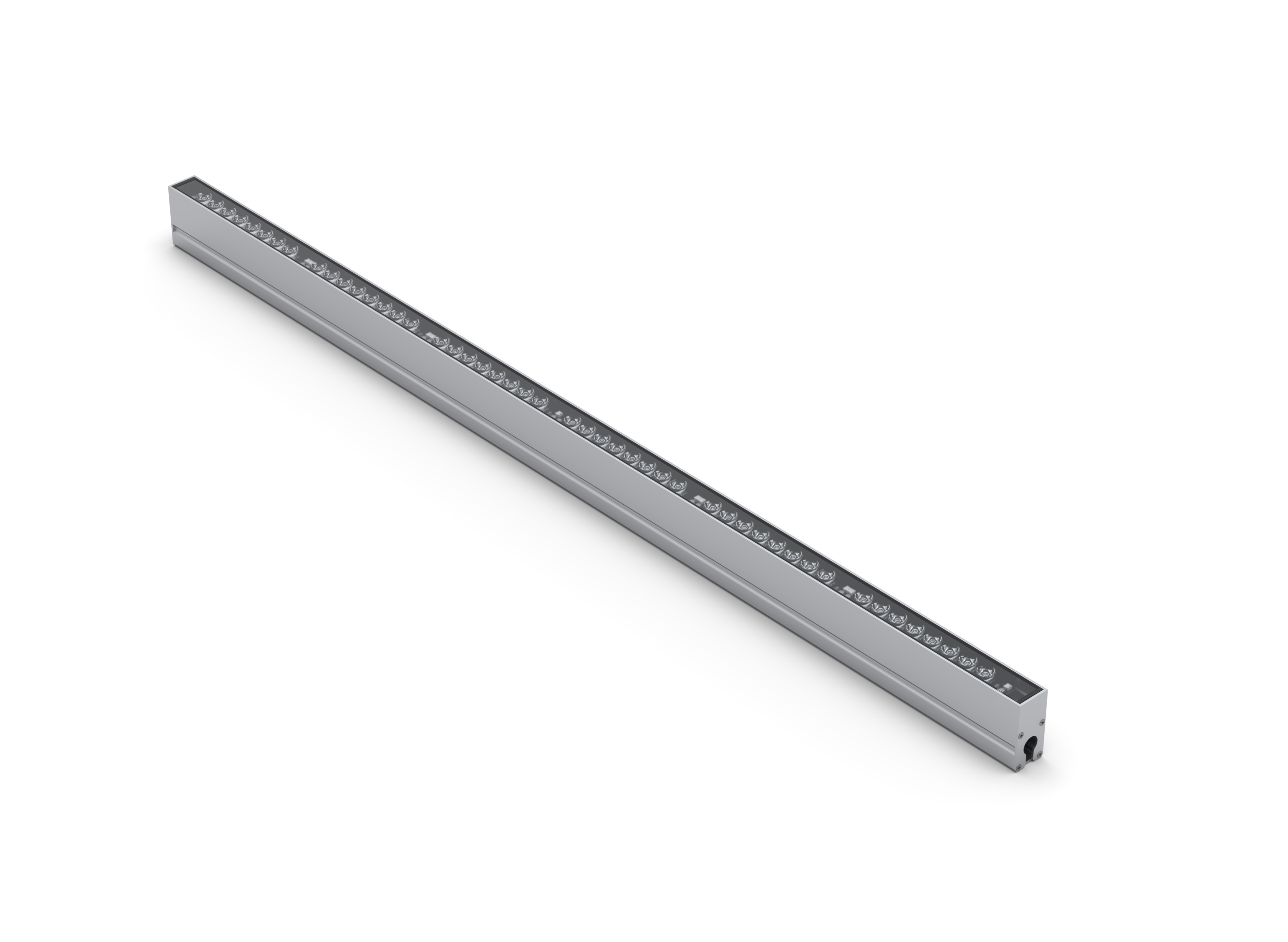

5752 - Clem-in (Outdoor lighting) New

Application

  • Lighting
    • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    4014 lm

Mounting type

  • Ground flush recessed fittings
  • Ground recessed fittings

Features

  • Weight
    1100 gr

Options of luminous effects

  • RGBW option
  • Non adjustable
  • Beam with various openings
  • Transparent flat window
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1 m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof organic glass

Mechanical strength - Waterproofness

  • Withstands random all vehicles traffic
  • Resists impacts up to IK10 60J
    IK10 60J
  • IP67 Tight for temporary immersion
    67

Downloads

Download Standard product datasheet (pdf)
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Please choose a type of optic
RGBW option available, please contact us.
Reset filters
Access the file
... Ajax content

Optic options available for the product: 5752 Clem-in

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
77°
120°
130x25° (L1)
116x44° (L2)
100x12° (L3)
40x10° (L4)
130x25° deflected 50° (L5)
116x44° deflected 36° (L6)
100x20° (L7)
Access the photometric data
Close
Photometric data
Please choose a type of optic
RGBW option available, please contact us.
Reset filters
Access the file
... Ajax content

Optic options available for the product: 5752 Clem-in

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
77°
120°
130x25° (L1)
116x44° (L2)
100x12° (L3)
40x10° (L4)
130x25° deflected 50° (L5)
116x44° deflected 36° (L6)
100x20° (L7)
Confirm
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images

Length with recess = 1500mm

Vandal-proof organic glass profile
Clear anodized aluminum sheath
Without protrusion
Cable outlet on the underside
18 LEDs 700mA controlled in PWM
Four-color option possible: 4x12 350mA LEDs controlled in PWM
