Product family » Chateauneuf

«Medium» version in the round flush recessed raking light range. The flange hides recess plate imperfections.
For versions with recessed elements, see LUCERNE.



APPLICATIONS:

  • Highlight architectural features, street furniture, landscape...
  • Surface mounted lighting for cycle path, pedestrian path, stairs
  • Squares and public places
Read more
  • Lighting
    • 1 product(s) in lighting
1570R
Projector This option does match with your criteria
  • Indicator lighting
    • 5 product(s) in marker-lighting
1570R
Marker-light This option does match with your criteria
1570RH
Uniform This option does match with your criteria
1570RHXX
Uniform This option does match with your criteria
1570RDS
Frosted dome This option does match with your criteria
1570RSOL
Solar marker light This option does match with your criteria
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

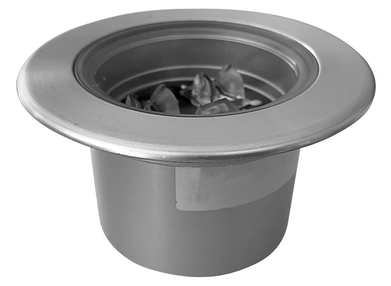

1570R - Chateauneuf (Outdoor lighting)

Application

  • Lighting
    • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    892 lm

Mounting type

  • Wall recessed
  • Pavements sides

Features

  • Weight
    400 gr

Options of luminous effects

  • RGB options
  • 20° deflected beam (option)
  • Non adjustable
  • Beam with various openings
  • Transparent flat window
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1 m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Resists impacts up to IK10 60J
    IK10 60J
  • IP68 Tight for extended immersion
    68

Downloads

Download Standard product datasheet (pdf)
Download EU Declaration of conformity
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Please choose a type of optic
RGB options available, please contact us.
Reset filters
Access the file
... Ajax content

Optic options available for the product: 1570R Chateauneuf

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
77°
120°
130x25° (L1)
116x44° (L2)
40x10° (L4)
130x25° deflected 50° (L5)
116x44° deflected 36° (L6)
100x20° (L7)
Access the photometric data
Close
Photometric data
Please choose a type of optic
RGB options available, please contact us.
Reset filters
Access the file
... Ajax content

Optic options available for the product: 1570R Chateauneuf

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
77°
120°
130x25° (L1)
116x44° (L2)
40x10° (L4)
130x25° deflected 50° (L5)
116x44° deflected 36° (L6)
100x20° (L7)
Confirm
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images
  • Colourless anodised machined aluminium body (except 1570RX)
  • Vandalproof organic glass window
  • Recess in or attach to walls, bollards, poles or other supports
