LEC
Product family » Luminy 2

«Medium» version in the Luminy spotlight range.

Installs on roads/floors, wall or poles with custom-adaptable accessories.



APPLICATIONS:

  • Highlight architectural features
  • Highlight landscapes
  • Path lighting, lanes, street furniture
Read more
Access product brochure PDF
see the next product see the previous product

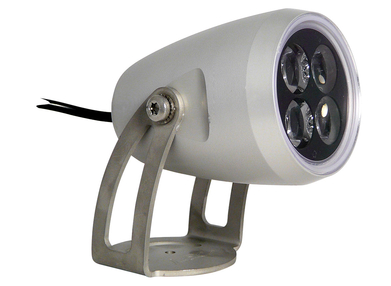

4020 - Luminy 2 (Outdoor lighting)

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    892 lm

Mounting type

  • Wall lights
  • Masts

Features

  • Weight
    750 gr

Options of luminous effects

  • Adjustable on 2 axis
  • Rotating beam
  • Beam with various openings
  • Transparent flat window
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1 m
  • 24 V power supply 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI
  • 230 V Class 2 power supply 230V
    Integrated
    230V-Non dimmable

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Resists impacts up to 20 joules (IK10)
    20
  • IP68 Tight for extended immersion
    68

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
RGBW option available, please contact us.
... Ajax content

Optic options available for the product: 4020 Luminy 2

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Bespoke
Access the photometric data
Close
Photometric data
RGBW option available, please contact us.
... Ajax content

Optic options available for the product: 4020 Luminy 2

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Bespoke
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
