Product family » Alicante

«Maxi» version in the orientable recessed round lights range.

Spotlight swivels 360° in its recess to direct the beam in the right direction with no installation constraints.

Independently adjustable tiltable parallel plates (-3° to +26°) by external adjustment without opening the fitting or compromising its water resistant.



APPLICATIONS:

  • Medium height facade lighting (10m)
  • Highlight architectural features, street furniture, trees…
  • Squares and public spaces
Read more
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

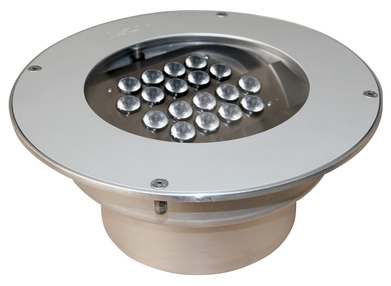

5727 - Alicante (Outdoor lighting)

Eco Design Eco Design

Application

  • Lighting
    • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    4014 lm

Mounting type

  • Ground flush recessed fittings
  • Ground recessed fittings

Features

  • Weight
    4600 gr

Options of luminous effects

  • RGBW option
  • Adjustable on 2 axis
  • Rotating beam
  • Beam with various openings
  • Transparent flat window
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1 m
  • 24V-Non dimmable 24V
    Integrated
    24V-Non dimmable
  • 230V-Non dimmable 230V
    Integrated
    230V-Non dimmable
    ,
    230V-0/10V
    ,
    230V-DMX
    ,
    230V-DALI

Material

  • Anodised glazed aluminium
  • 316L Stainless steel
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Withstands random all vehicles traffic
  • Resists impacts up to 60 joules (IK10)
    60
  • IP68 Tight for extended immersion
    68
  • Adjustable orientation without dismantling

Downloads

Download Standard product datasheet (pdf)
Download EU Declaration of conformity
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Please choose a type of optic
RGBW option available, please contact us.
Reset filters
Access the file
This projector offers 2 adjustable separated plates at +/- 25° with 9 LEDs each. .ies files are set for one plate only. You have to position your lighting on both plates. The luminous flow is indicated for only a plate
... Ajax content

Optic options available for the product: 5727 Alicante

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
77°
120°
130x25° (L1)
116x44° (L2)
40x10° (L4)
130x25° deflected 50° (L5)
116x44° deflected 36° (L6)
100x20° (L7)
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Bespoke
Access the photometric data
Close
Photometric data
Please choose a type of optic
RGBW option available, please contact us.
Reset filters
Access the file
This projector offers 2 adjustable separated plates at +/- 25° with 9 LEDs each. .ies files are set for one plate only. You have to position your lighting on both plates. The luminous flow is indicated for only a plate
... Ajax content

Optic options available for the product: 5727 Alicante

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
77°
120°
130x25° (L1)
116x44° (L2)
40x10° (L4)
130x25° deflected 50° (L5)
116x44° deflected 36° (L6)
100x20° (L7)
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Bespoke
Confirm
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images
  • Colourless anodised aluminium body and collar
  • Vandalproof organic glass window
  • 316L Stainless steel screws
  • Flush-recessed
  • 2 possible recess dimensions
  • Withstands occasional traffic from all kinds of vehicles
  • RGBW Option available
