LEC
Product family » Allevard

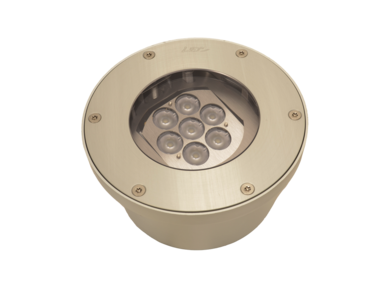

This flush embedded spotlight is equipped with a rotating tray of 6 or 7 high power LEDs adjustable without dismantling.

Watertightness cannot be questioned by the adjustment.

Many different optics allowing to adjust the beam to the lighted item.

Read more
Access product brochure PDF
see the next product see the previous product

5716 - Allevard (Outdoor lighting)

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    1050 lm

Mounting type

  • Ground flush recessed fittings
  • Ground recessed fittings

Features

  • Weight
    2300 gr

Options of luminous effects

  • Adjustable on 2 axis
  • Rotating beam
  • Beam with various openings
  • Transparent flat window
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1 m
  • 24 V power supply 24V
    Integrated
    24V-Non dimmable
    ,
    24V-PWM
    ,
    24V-DMX
    Remote
    24V-0/10V
    ,
    24V-DALI
  • 230 V Class 2 power supply 230V
    Integrated
    230V-Non dimmable
    ,
    230V-PWM
    ,
    230V-0/10V
    ,
    230V-DMX
    ,
    230V-DALI

Material

  • Anodised glazed aluminium
  • 316L Stainless steel
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Withstands random all vehicles traffic
  • Resists impacts up to 60 joules (IK10)
    60
  • IP68 Tight for extended immersion
    68
  • Double water tightness IP67 + IP68

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
RGBW option available, please contact us.
± 20° tilt
... Ajax content

Optic options available for the product: 5716 Allevard

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Bespoke
Access the photometric data
Close
Photometric data
RGBW option available, please contact us.
± 20° tilt
... Ajax content

Optic options available for the product: 5716 Allevard

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Please contact us to develop optics suited to your photometric specs.
Bespoke
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

- Ø 181 mm flush anodised aluminium sheet embedding + PVC
- Anodized cast aluminium body
- Polycarbonate anti-vandalism anti-UV window, 12 mm thick
- Anodized aluminium flange Ø 176/105
- Adjustable orientation in rotation (360°)
- Adjustable angle ( (± 25°) orientation without dismantling
- Brushed Ø 176/105 stainless steel flange 316L (X)
- 230 Volts supply (5716T- non dimmable) through supply
