Product family » Albi

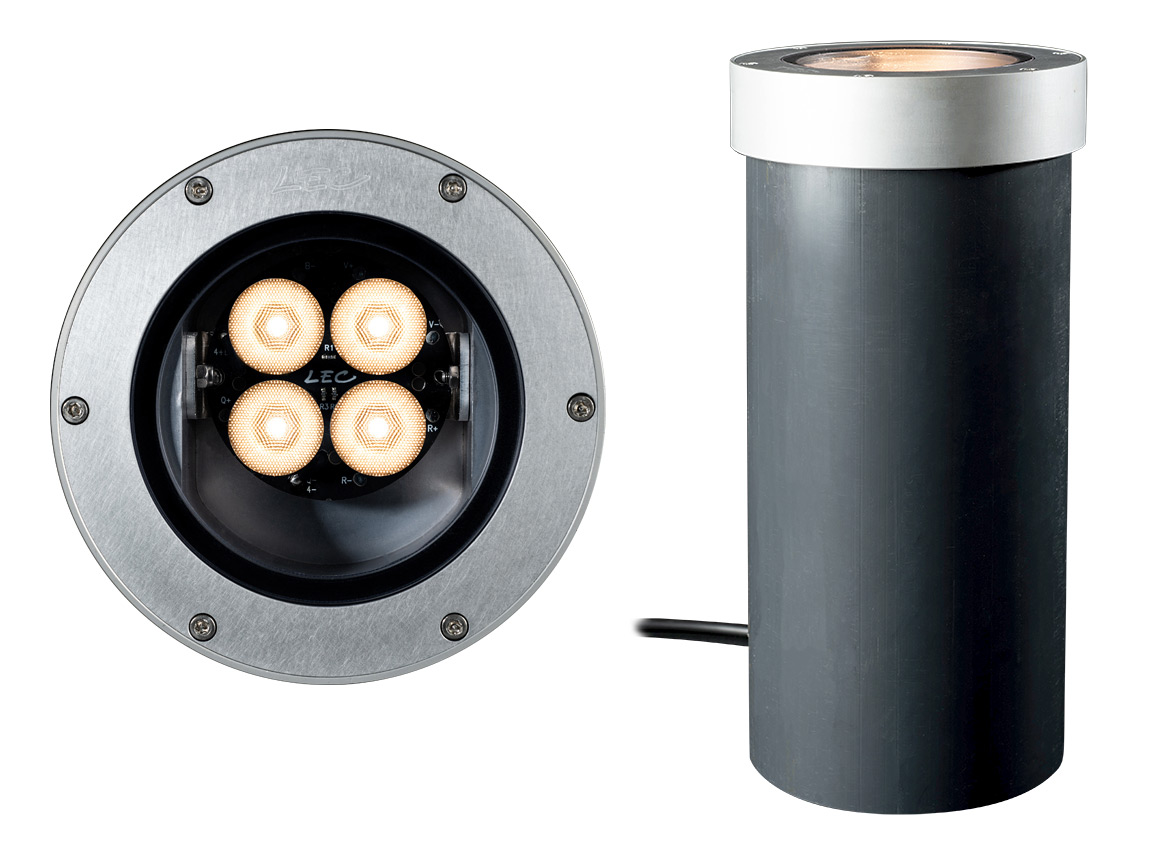

Small adjustable flush recessed 4 LED

“Mini” version of the adjustable recessed round light range

360° rotation of spotlight in its recessed housing to direct the light in the chosen direction without installation constraints Tiltable beam module (+30°/-10°)


APPLICATIONS:

  • Highlight architectural features, street furniture, landscape…
  • Uniform facade lighting
Read more
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

5713 - Albi (Outdoor lighting) New

Application

  • Lighting
    • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    892 lm

Mounting type

  • Ground flush recessed fittings
  • Ground recessed fittings

Features

Options of luminous effects

  • RGBW option
  • Adjustable on 2 axis
  • Rotating beam
  • Beam with various openings
  • Transparent flat window
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1m
  • 24V-Non dimmable 24V
    Integrated
    24V-Non dimmable
    ,
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI
  • 230V-Non dimmable 230V
    Integrated
    230V-Non dimmable
    ,
    230V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Withstands random all vehicles traffic
  • Resists impacts up to IK10 60J
    IK10 60J
  • IP68 Tight for extended immersion
    68

Downloads

Download Standard product datasheet (pdf)
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Please choose a type of optic
RGBW option available, please contact us.
Reset filters
Access the file
... Ajax content

Optic options available for the product: 5713 Albi

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
77°
120°
130x25° (L1)
116x44° (L2)
40x10° (L4)
100x20° (L7)
Access the photometric data
Close
Photometric data
Please choose a type of optic
RGBW option available, please contact us.
Reset filters
Access the file
... Ajax content

Optic options available for the product: 5713 Albi

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
77°
120°
130x25° (L1)
116x44° (L2)
40x10° (L4)
100x20° (L7)
Confirm
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images
  • Anodised aluminium body
  • Colourless anodised machined aluminium flange
  • Vandalproof organic glass window
  • 316L stainless steel screws
  • Flush recessed
  • Withstands occasional road traffic by any vehicle type
  • RGBW option available
