LEC
Product family » Passy

Linear spotlight for recessing in public spaces. Can be ordered in two lengths, installed individually or as a continuous line.
Externally adjustable tiltable LED plate (0° to 25°) without without opening the fitting or compromising its water resistant. Device swivels in its recess for the opposite direction.
Clips in with no screws for vandal-proof installation.



APPLICATIONS:

  • Medium height facade lighting (10m)
  • Highlight architectural features, street furniture, trees…
  • Squares and public spaces
Read more
Access product brochure PDF
see the next product see the previous product

5761MAM - Passy (Outdoor lighting)

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    6021 lm

Mounting type

  • Ground flush recessed fittings
  • Ground recessed fittings

Features

  • Weight
    11900 gr

Options of luminous effects

  • Adjustable on 1 axis
  • Rotating beam
  • Transparent flat window

Power supply - Control

  • Cable length
    1 m
  • 24V-Non dimmable 24V
    Integrated
    24V-Non dimmable
  • 230V-Non dimmable 230V
    Integrated
    230V-Non dimmable

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Withstands random all vehicles traffic
  • Resists compression up to 4 tons
    4T
  • Resists impacts up to IK10 60J
    IK10 60J
  • IP68 Tight for extended immersion
    68
  • Adjustable orientation without dismantling

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
... Ajax content

Optic options available for the product: 5761MAM Passy

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Access the photometric data
Close
Photometric data
... Ajax content

Optic options available for the product: 5761MAM Passy

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

Lenght = 1 m

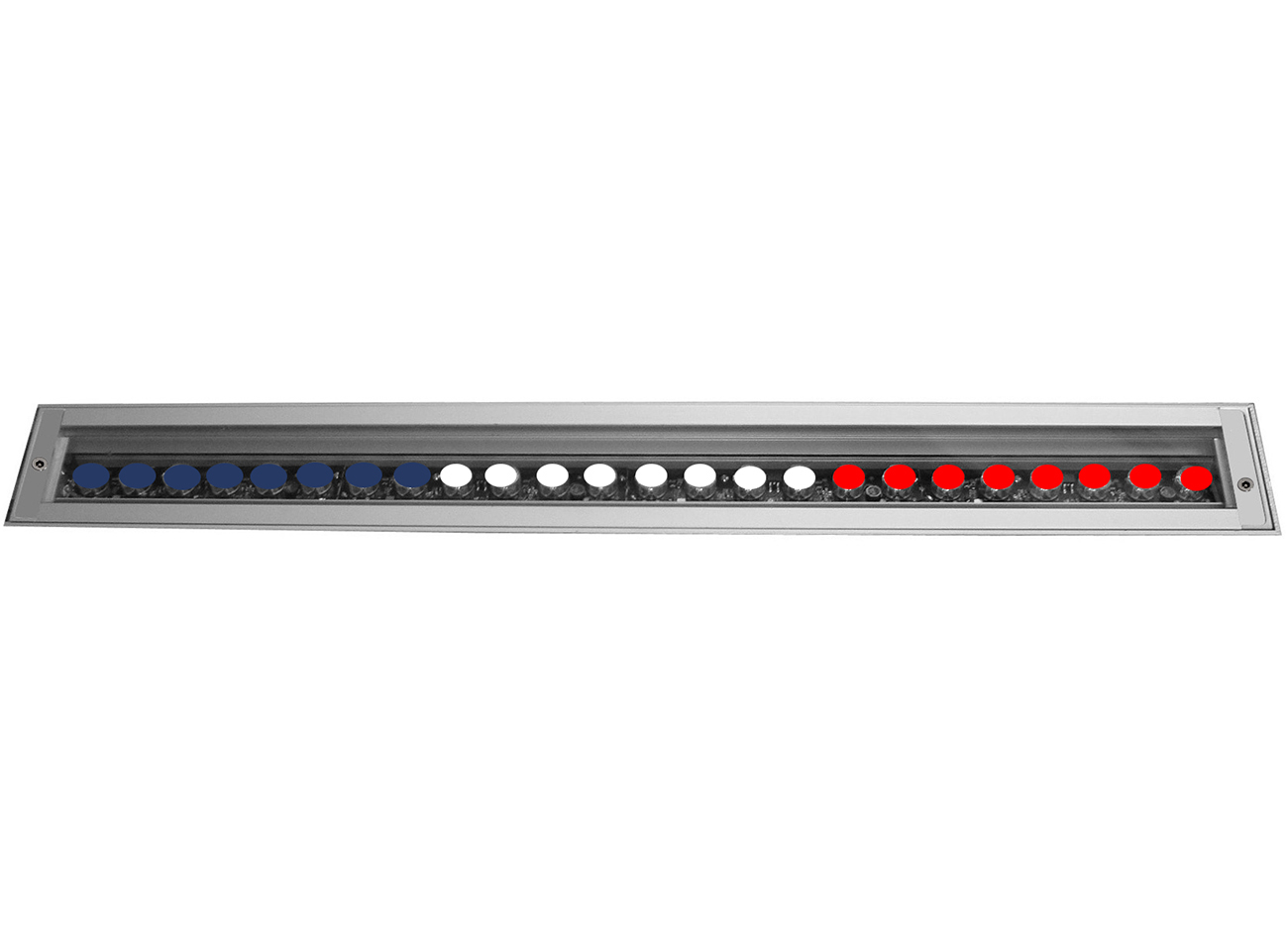

Blue, white and red LEDs installed to reproduce the French flag. For Memorial, Government building facade lighting.

  • Colourless anodised aluminium body
  • Vandalproof organic glass window
  • Flush-recessed
  • Extruded aluminum profiled recess plate and accessories for continuous line or independent installation
  • Cavity in the recess for running the cable and connectors
  • Withstands occasional traffic from all kinds of vehicles
  • RGBW options available
  • anti-glare option available
see more
