Lafayette bridge, Lyon Overall view
  • working since
  • 2016

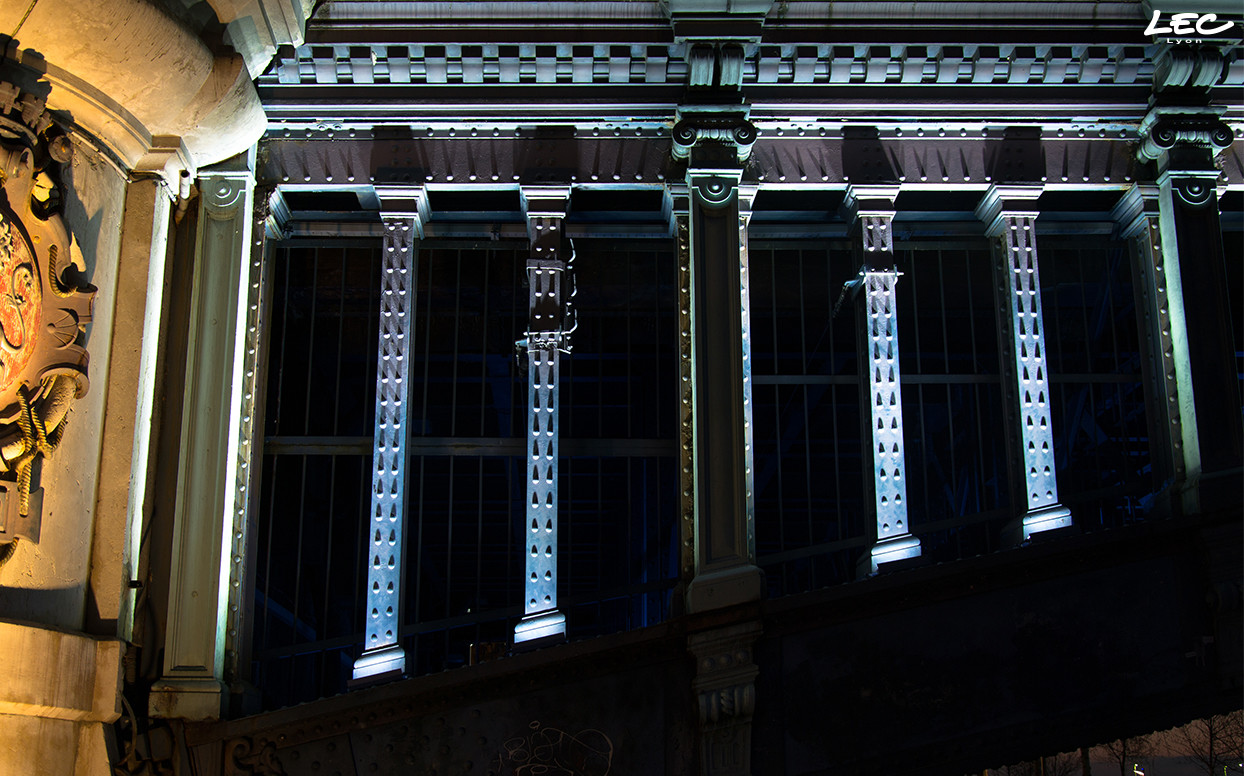

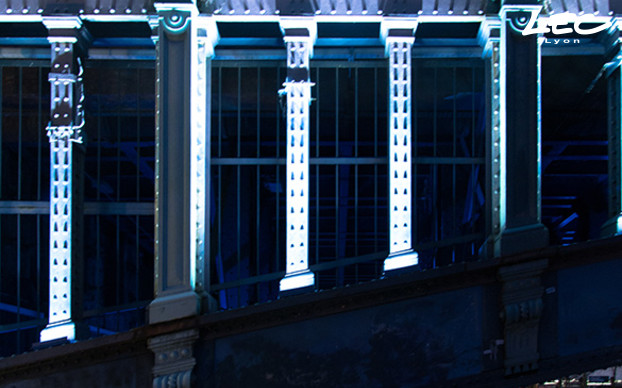

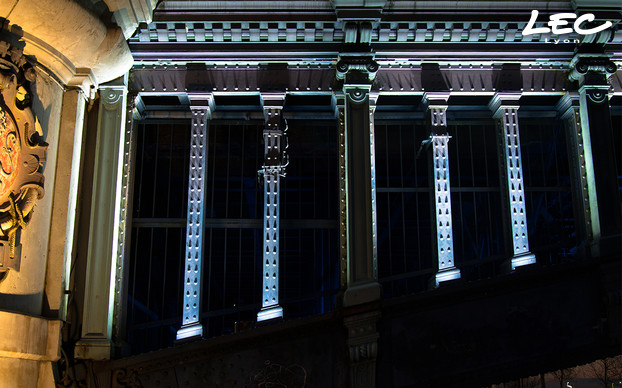

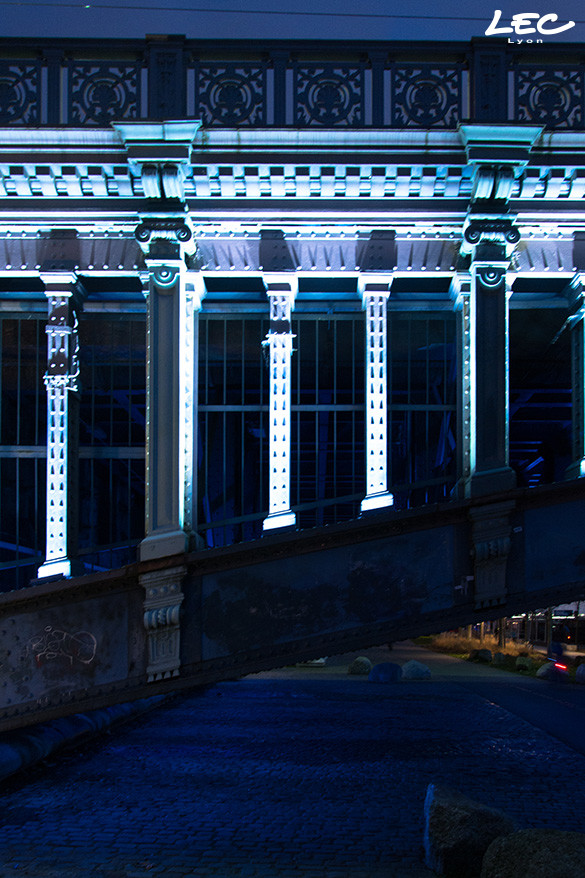

Within the city’s energy-saving lighting scheme: the Lafayette bridge, third eldest bridge over the Rhône river, has been uplit.

To illuminate this major civil engineering work:
- 116 meters of 5650-Clem are horizontally fixed in the center of the arches to light the upper part of the bridge. Their tilt can be adjustable.
- 164 projectors 5633-Arches are horizontally installed on the arches' ends near the pilars and light up the upper part. Their tilt can be adjustable.
- 2 projectors 5727-Alicante are in-ground recessed the pilar on the riverbank.

All projectors Clem-5650 and Arches-5633 are individually controlled by a DALI system.

Specifier and lighting design: City of Lyon - Public Lighting Department
Installer: Citeos
Working since: January 2016
Photos: LEC

see more
5633 - Arches
5633 - Arches
Mounting type Wall lights

This compact linear spotlight is designed to be installed on a windowsill or facade belt-course.
Fitted with an 100x12° lens, the uprights and lintel of the windowframe will be illuminated without emitting any unwanted-beams.

For installation on an architectural belt-course, the choice of available lenses allows upward converging beams or uniform wall-washing of the facade despite being installed very close to the facade.



APPLICATIONS:

  • Windowframe lighting
  • Wallwashing
  • Architectural heritage enhancement
  • Path lighting
  • Direct or indirect lighting of public space
See the product
  • <p>5633-Arches in cold white with an optic mix</p>

    5633-Arches in cold white with an optic mix
