Product family » Meteor

«Maxi» version in the round flush recessed raking light range.

APPLICATIONS:

Highlight architectural features, street furniture, landscapes…
Uniform facade lighting
Squares and public places

Lighting

2855

Projector This option does match with your criteria

Indicator lighting

2855H

Uniform This option does match with your criteria

2855XX

Specific signage This option does match with your criteria

2855M

Infinite mirror effect This option does match with your criteria

Access product brochure PDF

See the products ranges synthesis New products Contact us

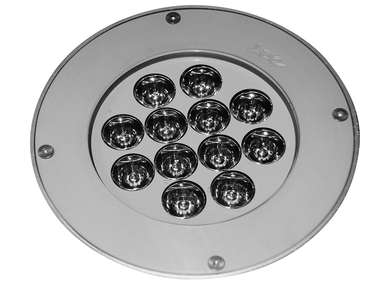

2855 - Meteor (Outdoor lighting)

Application

Lighting

This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
Standard flux :
2676 lm

Mounting type

Ground flush recessed fittings
Ground recessed fittings

Features

Weight
860 gr

Options of luminous effects

RGB options
20° deflected beam (option)
Non adjustable
Beam with various openings
Transparent flat window
Colour control system (optional)

Power supply - Control

Cable length
1 m
24V-PWM

Integrated

24V-PWM

Remote

24V-0/10V
,
24V-DMX
,
24V-DALI
230V-Non dimmable

Integrated

230V-Non dimmable
,
230V-0/10V

Material

Anodised glazed aluminium
Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

Resists impacts up to IK10 60J
IK10 60J
IP68 Tight for extended immersion
68

Downloads

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

Electricity consumption
Output
Maximum use temperature
Contact temperature

Configure now

Product configurator

Optic options available for the product: 2855 Meteor

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on your chosen optic, then confirm.

Polar data Simulation In position

10°

20°

36°

52°

77°

120°

130x25° (L1)

116x44° (L2)

40x10° (L4)

130x25° deflected 50° (L5)

116x44° deflected 36° (L6)

100x20° (L7)

Access the photometric data

Photometric data

Optic options available for the product: 2855 Meteor

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on one or more chosen optics, then confirm.

I select all the optics.

Polar data Simulation In position

130x25° deflected 50° (L5)

116x44° deflected 36° (L6)

100x20° (L7)

Confirm

Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

Colourless anodised aluminium body and flange
Vandalproof organic glass window
316L Stainless steel screws
Installs in dedicated recess plate
RGB options available
