LEC
Product family » Brunei

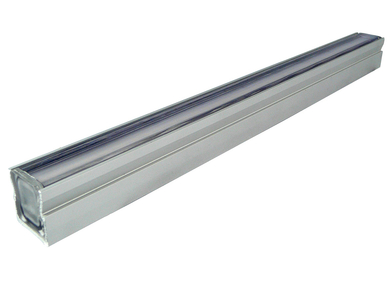

This lightbar is designed to be recessed for use in public spaces.

Its organic glass withstands UV rays, extreme weather conditions, most chemicals (except concentrated acids) and de-icing salt.

It can be ordered in any length, up to 2m.

It offers multiple possibilities for lighting effects.

Read more
Access product brochure PDF
see the next product see the previous product

5620 - Brunei (Outdoor lighting)

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    1440 lm

Mounting type

  • Wall lights
  • Wall recessed
  • Ground flush recessed fittings
  • Ground recessed fittings
  • Pavements sides
  • Handrails

Features

  • Weight
    730 gr/m
bespoke

Options of luminous effects

  • Non adjustable
  • Beam with various openings
  • Transparent flat window
  • Colour control system (optional)

Power supply - Control

  • Cable length
    Connector
  • 24 V power supply 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof organic glass

Mechanical strength - Waterproofness

  • Withstands 2-wheels traffic
  • Withstands random all vehicles traffic
  • Resists impacts up to 60 joules (IK10)
    60
  • IP68 Tight for extended immersion
    68

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
mm
RGB options available, please contact us.
To get a simulation of a linear with a length greater than 2 meters, please several linears smaller than 2 meters.
... Ajax content

Optic options available for the product: 5620 Brunei

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Access the photometric data
Close
Photometric data
mm
RGB options available, please contact us.
To get a simulation of a linear with a length greater than 2 meters, please several linears smaller than 2 meters.
... Ajax content

Optic options available for the product: 5620 Brunei

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

- Organic glass bar 20 x 20mm
- Recessed in a 25 x 25 mm anodised aluminium profile
- Can be ordered in any length: Maximum 2 metres, Minimum 15 cm, Tolerance ± 2 mm

Accessories :
- Recessed profiles 5620E1 (30 x 32) and 5620E2 (30 x 82 mm) serve as cable races, facilitate installation and are vandal-proof. (see 5620 connectique datasheet)
- IP68 (TRS) power distribution harness (see 5620 connectique datasheet)
- Various fixing accessories
