LEC
Product family » Soulary

LED linear projector with a pendant cable system to up-light alleyways.

Read more
Access product brochure PDF
see the next product see the previous product

5533 - Soulary (Outdoor lighting) New

Eco Design Eco Design

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    900 lm

Mounting type

  • Overhead catenary lights

Features

  • Weight
    1100 gr

Options of luminous effects

  • Adjustable on 1 axis
  • Rotating beam
  • Beam with various openings
  • Transparent flat window
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1 m
  • 24 V power supply 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Resists impacts up to 20 joules (IK10)
    20
  • IP67 Tight for temporary immersion
    67

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
RGB options available, please contact us.
... Ajax content

Optic options available for the product: 5533 Soulary

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Access the photometric data
Close
Photometric data
RGB options available, please contact us.
... Ajax content

Optic options available for the product: 5533 Soulary

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

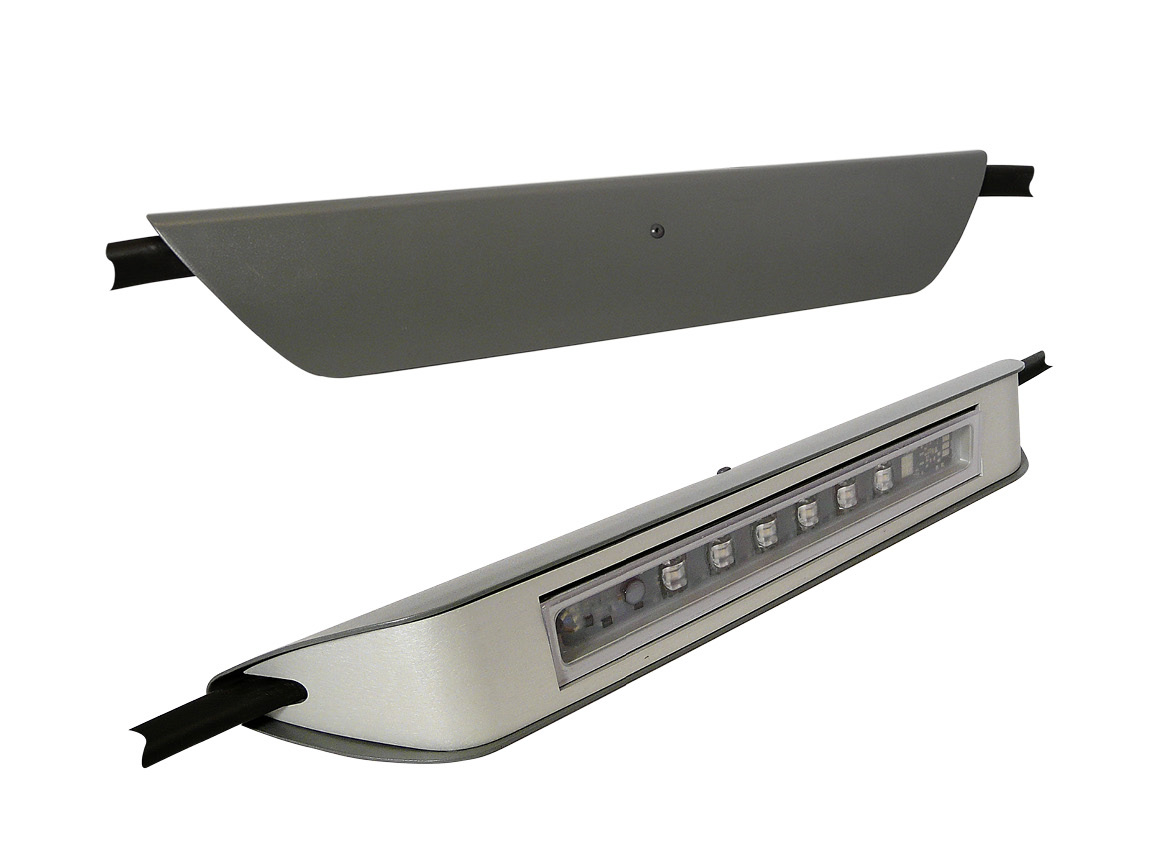

It is made of:
- a LED linear with 6 superwatt LED in 1W ou 3W, tilted projector on a +/- 10° axis
- a painted or an anodised aluminium housing
- a A4 stainless steel fixing system to the suspended cable by tightening cable
- a connecting system to the power cable, by fast and IP66 watertight dominos



see more
