Product family » Corsica

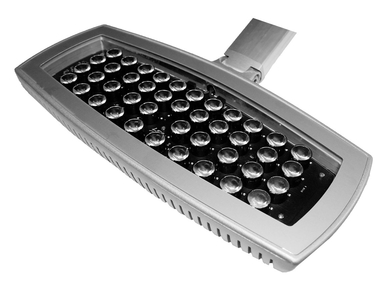

This spotlight is supplied with 42 high power LEDs and a wide choice of optics.

Systems of optics are specifically designed for wall-washing.

See the products ranges synthesis New products Contact us

4660 - Corsica (Outdoor lighting) New

Application

Lighting

This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
Standard flux :
6300 lm

Mounting type

Wall lights
Masts

Features

Weight
5000 gr

Options of luminous effects

Adjustable on 2 axis
Rotating beam
Beam with various openings
Transparent flat window
Colour control system (optional)

Power supply - Control

Cable length
5 m
24 V power supply

Integrated

24V-Non dimmable
230 V Class 2 power supply

Integrated

230V-Non dimmable
,
230V-PWM
,
230V-0/10V
,
230V-DMX
,
230V-DALI

Material

Marine anodised cast aluminium
Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

Resists impacts up to 20 joules (IK10)
20
IP67 Tight for temporary immersion
67

Downloads

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

Electricity consumption
Output
Maximum use temperature
Contact temperature

Configure now

Product configurator

Optic options available for the product: 4660 Corsica

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on your chosen optic, then confirm.

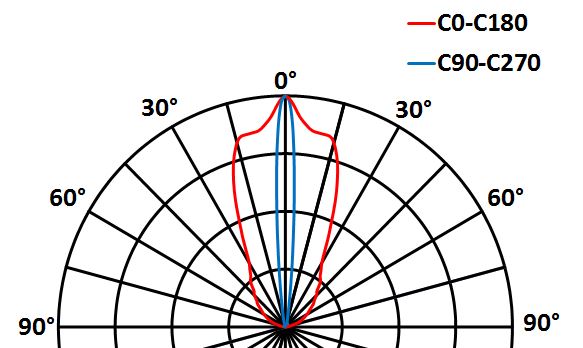

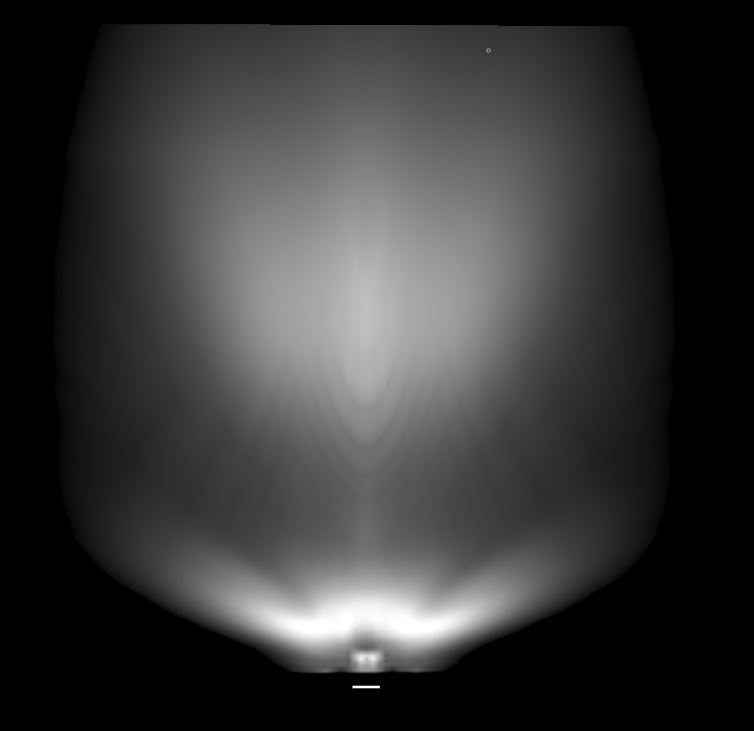

Polar data Simulation In position

6°

10°

20°

36°

52°

120°

130x25° (L1)

116x44° (L2)

100x12° (L3)

40x10° (L4)

130x25° deflected 50° (L5)

116x44° deflected 36° (L6)

100x20° (L7)

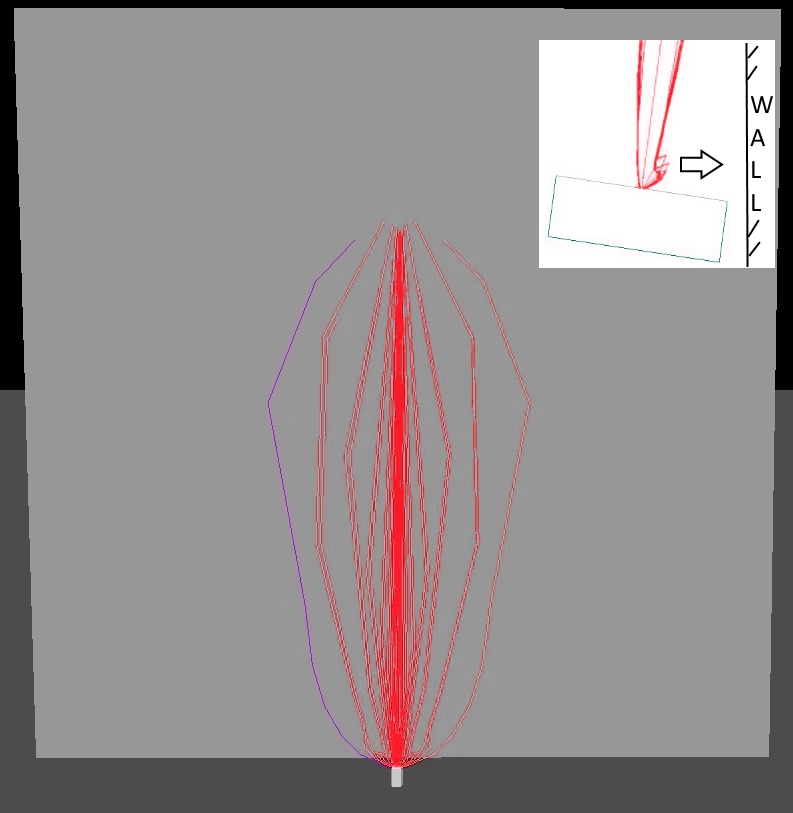

For wall washing Warning : choose the right orientation

Please contact us to develop optics suited to your photometric specs.

Bespoke

Access the photometric data

Photometric data

Optic options available for the product: 4660 Corsica

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on one or more chosen optics, then confirm.

I select all the optics.

Polar data Simulation In position

130x25° deflected 50° (L5)

116x44° deflected 36° (L6)

100x20° (L7)

For wall washing Warning : choose the right orientation

Please contact us to develop optics suited to your photometric specs.

Bespoke

Confirm

Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France.

- Cast aluminium LED module, thermolacquered bespoke RAL
- Polycarbonate window, UV proof, resistant to vandalism, 8 mm thick
- Bespoke satin-finish aluminium arm, maximum length 1-meter, includes a power supply cable
- Plate that can be fixed on a facade (PF) or on a mast (PM)
- Offset power and control box
- Rotation of the light beam to the closest degree and according to 2 axis A and B:
A: +/- 60° around the spherical double lock
B: +/- 15° around the arm’s axis

Options:
-Special fixation plate (4660Fxx or 4660Mxx)
- Telescopic arm (4660PF1**)
- Thermo-lacquered luminaire (choice of RAL)
- Standard cap (4660CAP) or special cap (4660CAPxx)
- Unpluggable cable with cable end (4660Y)
