Product family » Corsica

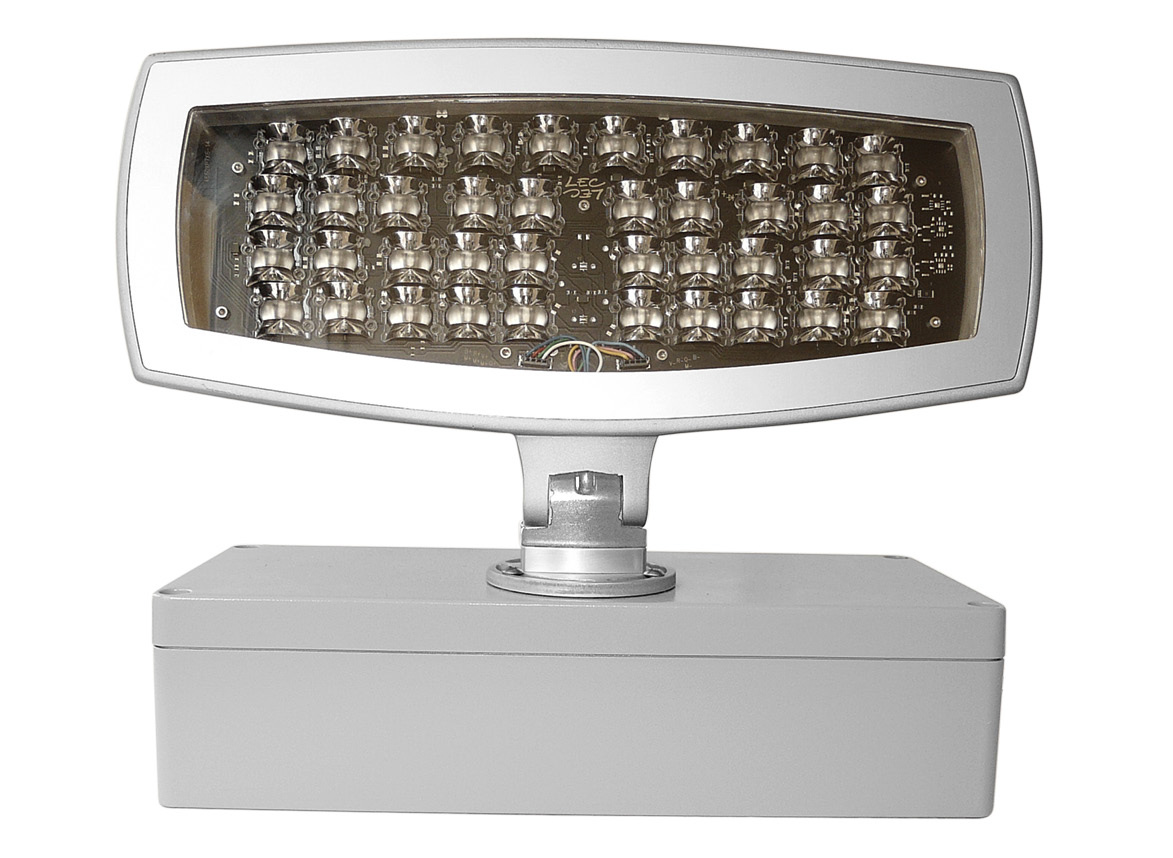

Spotlight developed for illuminating facades, with a compact design and optimised for uniform wall-washing.
APPLICATIONS:
- Facade, monument lighting
- Tree and vegetation uplighting
- Direct or indirect lighting of public space
-
Lighting
2 product(s) in lighting
4661 - Corsica
Application
-
Lighting
Outdoor lighting
- This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K) Standard flux :9366 lm
Mounting type
-
Wall lights
Features
-
Weight
5000 gr
Options of luminous effects
-
RGBW option
-
Adjustable on 2 axis
-
Rotating beam
-
Beam with various openings
-
Transparent flat window
-
Colour control system (optional)
Power supply - Control
-
Cable length
0 -
230V-Non dimmable
Integrated230V-Non dimmable,230V-PWM,230V-0/10V,230V-DMX,230V-DALI
Material
-
Marine anodised cast aluminium
-
Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2
Mechanical strength - Waterproofness
Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.
-
Electricity consumption
-
Output
-
Maximum use temperature
-
Contact temperature
Product configurator
Optic options available for the product: 4661 Corsica
Your search criteria :
Number of LEDs :
Type of LEDs :
Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
For wall washing
Warning : choose the right orientation
For wall washing
Warning : choose the right orientation
For wall washing
Warning : choose the right orientation
F1
Access the photometric data
For wall washing
Warning : choose the right orientation
For wall washing
Warning : choose the right orientation
For wall washing
Warning : choose the right orientation
F1
Photometric data
Optic options available for the product: 4661 Corsica
Your search criteria :
Number of LEDs :
Type of LEDs :
Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
For wall washing
Warning : choose the right orientation
For wall washing
Warning : choose the right orientation
For wall washing
Warning : choose the right orientation
F1
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France.
Luminous module of the 4660 with ground mounting plate that integrates power supply and control.
- Aluminium body with thermolacquered paint finish, RAL on request
- Vandalproof organic glass window
- Fixed or adjustable arm (max 1m)
- Tilt adjustment: +/- 90° around the 2-way-locking ball & socket and +/- 15° around the arm axis
- Remote power & control unit (except 4661)
- Optional light hood
- RGBW options available
