LEC
Product family » Saint-Jean

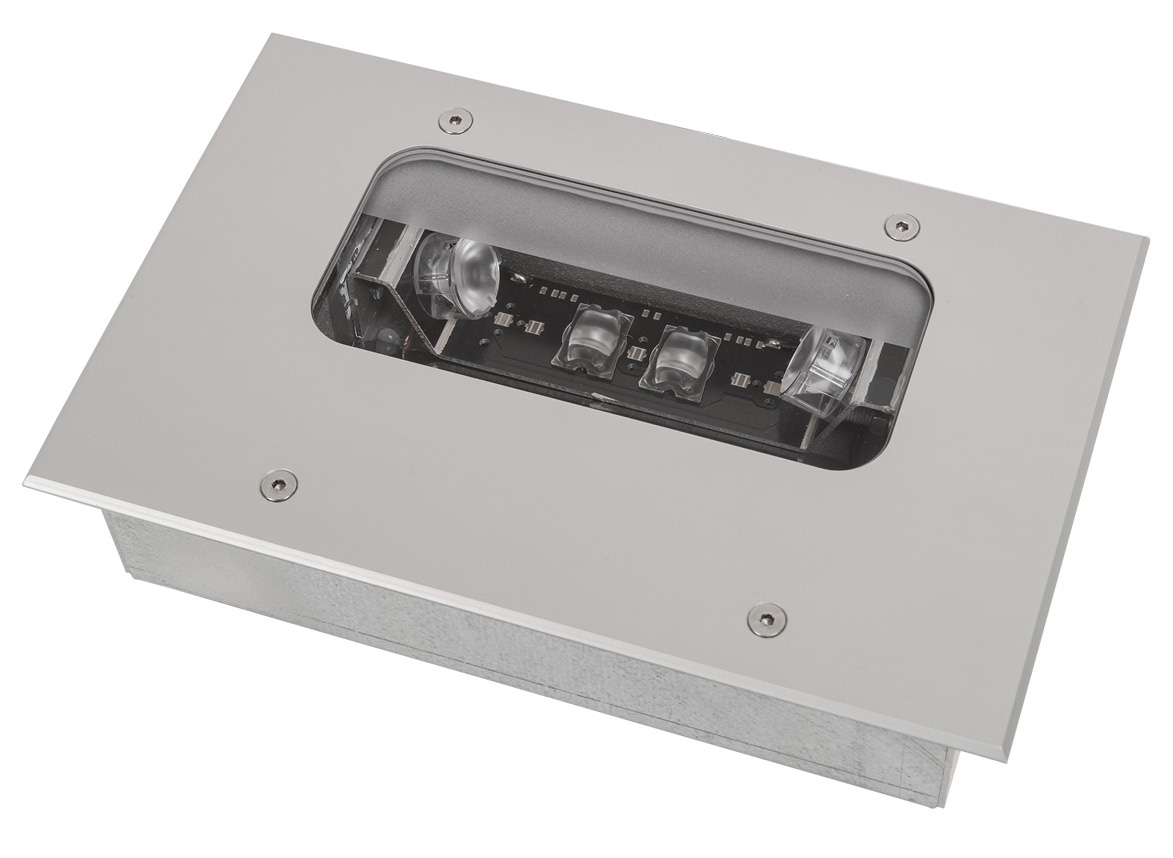

Recessed spotlight for path lighting to be placed at less than one metre above ground.

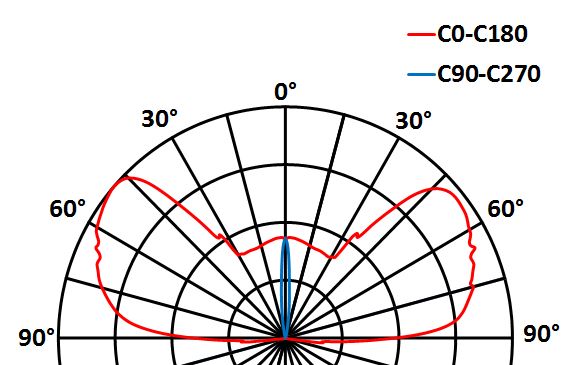

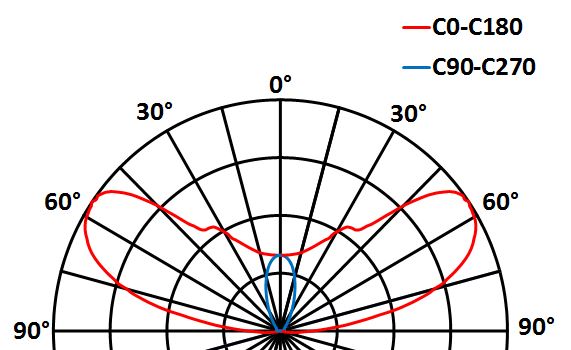

Special H30 and H60 lenses Cycle paths and pedestrian paths lighting, at large intervals (more than 6m). Tiltable beam (+/-30°) without opening the spotlight.

Wall version of the 6430 bollard.



APPLICATIONS:

  • Cycle paths and pedestrian paths lighting
  • Stair lighting
  • Monuments lighting
Read more
Access product brochure PDF
see the next product see the previous product

4330 - Saint-Jean (Outdoor lighting)

Eco Design Eco Design

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    892 lm

Mounting type

  • Wall recessed

Features

  • Weight
    1250 gr

Options of luminous effects

  • Adjustable on 1 axis
  • Rotating beam
  • Beam with various openings
  • Transparent flat window

Power supply - Control

  • Cable length
    1 m
  • 24 V power supply 24V
    Integrated
    24V-Non dimmable
    ,
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI
  • 230 V Class 2 power supply 230V
    Integrated
    230V-Non dimmable

Material

  • Anodised glazed aluminium
  • 316L Stainless steel
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • IP69K pressure water spray (previous registration)
  • Resists impacts up to 20 joules (IK10)
    20
  • IP67 Tight for temporary immersion
    67
  • Double water tightness IP67 + IP68

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
± 35° tilt
... Ajax content

Optic options available for the product: 4330 Saint-Jean

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Access the photometric data
Close
Photometric data
± 35° tilt
... Ajax content

Optic options available for the product: 4330 Saint-Jean

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
  • Anodised aluminium body
  • Colourless anodised machined aluminium frame
  • Vandalproof organic glass window
  • Thermolacquered paint on frame on request
see more
