Product family » Luminy 6

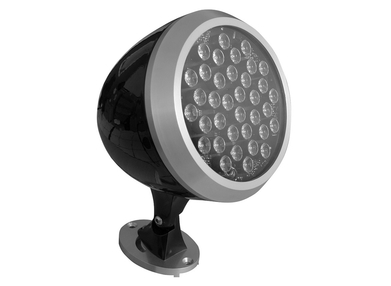

This projector is equipped with 36 high power LEDs.

It can be fitted with a wide variety of optic systems, is orientable along 3 axes, and can be attached to a mast or a facade.

It offers integrated power supply and control systems.

Other modals from the Luminy range: 4010-Luminy, 4020-Luminy 2, 4040-Luminy 4

See the products ranges synthesis New products Contact us

4060 - Luminy 6 (Outdoor lighting)

Application

Lighting

This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
Standard flux :
5400 lm

Mounting type

Wall lights
Masts

Features

Weight
5300 gr

Options of luminous effects

Adjustable on 3 axis
Rotating beam
Beam with various openings
Transparent flat window
Colour control system (optional)

Power supply - Control

Cable length
5 m
230 V Class 2 power supply

Integrated

230V-Non dimmable
,
230V-0/10V
,
230V-DMX
,
230V-DALI

Material

Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

Resists impacts up to 20 joules (IK10)
20
IP67 Tight for temporary immersion
67

Downloads

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

Electricity consumption
Output
Maximum use temperature
Contact temperature

Configure now

Product configurator

Optic options available for the product: 4060 Luminy 6

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on your chosen optic, then confirm.

Polar data Simulation In position

6°

10°

20°

36°

52°

120°

130x25° (L1)

116x44° (L2)

100x12° (L3)

40x10° (L4)

130x25° deflected 50° (L5)

116x44° deflected 36° (L6)

100x20° (L7)

Please contact us to develop optics suited to your photometric specs.

Bespoke

Access the photometric data

Photometric data

Optic options available for the product: 4060 Luminy 6

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on one or more chosen optics, then confirm.

I select all the optics.

Polar data Simulation In position

130x25° deflected 50° (L5)

116x44° deflected 36° (L6)

100x20° (L7)

Please contact us to develop optics suited to your photometric specs.

Bespoke

Confirm

Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France.

- Body Ø 248 mm, thermolacquered aluminium, anthracite grey RAL 7015
- Polycarbonate window, UV-proof, vandal-proof, 12 mm thick
- Thermolacquered aluminium bracket incorporates the supply cable
- Satin-finish aluminium mounting plate can be attached to a facade or mast
- Satin-finish aluminium LED module, 360° orientable relative to the body
- Orientable bracket and plate
- Painted LED module, plate and/or visor on request (4060P1)
