Product family » Belval

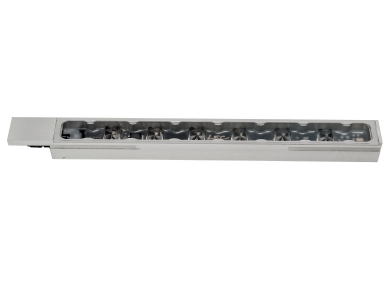

With its dimensions, the linear projector 5630-Belval can be installed in cramped situations, while benefiting from the performance of a projector with 6 high power LEDs.

Level of minimum illumination 100 luxes on a 1.2 m strip with an L1 optic.

Read more
Access product brochure PDF
see the next product see the previous product

5630 - Belval (Outdoor lighting)

Eco Design Eco Design

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    436.8 lm

Mounting type

  • Wall recessed
  • Handrails

Features

  • Weight
    370 gr

Options of luminous effects

  • 20° deflected beam (option)
  • Non adjustable
  • Beam with various openings
  • Transparent flat window
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1 m
  • 24 V power supply 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Resists impacts up to 20 joules (IK10)
    20
  • IP67 Tight for temporary immersion
    67

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
RGB options available, please contact us.
Reduced power for a satisfactory contact temperature.
... Ajax content

Optic options available for the product: 5630 Belval

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Access the photometric data
Close
Photometric data
RGB options available, please contact us.
Reduced power for a satisfactory contact temperature.
... Ajax content

Optic options available for the product: 5630 Belval

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

- Organic glass window anti-scratches and anti-uv
- Anodized aluminium profile 25 x 25 x300 mm can be embedded in a LEC-E1 profile with no visible screw

LED linear projector to be recessed:

  • Small dimensions: L300 x W25 x H25 mm
  • To be recessed into an E1 profile
  • 6 Superwatt LEDs available in 1W or 3W
  • Choice of the LEDs colour and choice of optics
  • Light intensity dimming
  • Options of a deviated beam and of luminous power for different applications other than handrails  (temperature > 40°C)
  • IP67 and IK10
  • Applications: feature lighting, handrails lighting
