LEC
Product family » Opera

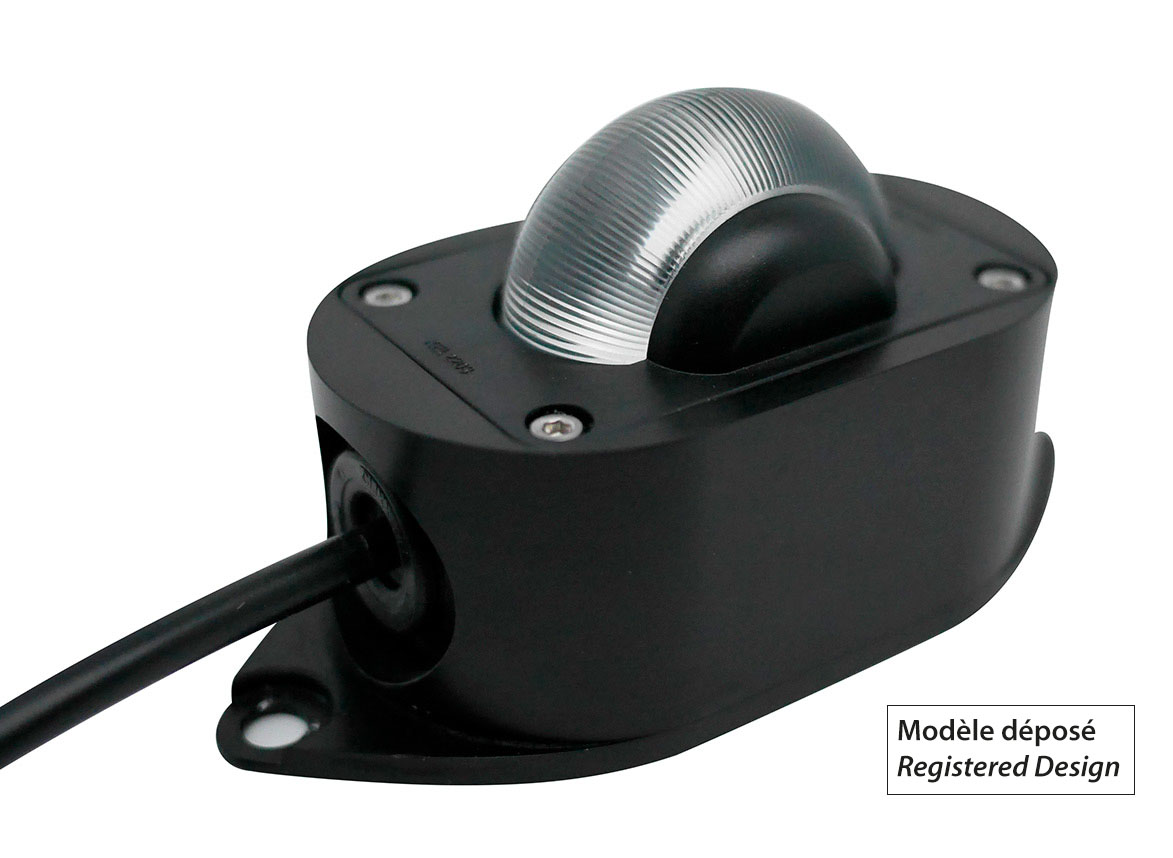

The OPERA light has a simple, discreet design and produces a beam that is almost 180°. It is powered by 24 V DC or 230 V AC and is available in input only or input/output version. It comes in a discreet black anodised finish or painted version (choice of colour).
Designed to highlight architectural features thanks to its LED, the 5637 - OPERA offers a wide range of lighting effects.
With the 5637 – OPERA, you can choose one colour per light.
Combined with a 180 x 4° lens, this makes it possible to accentuate architectural details with precision and finesse.

APPLICATIONS :
• Window surrounds
• Ceiling lights for tunnels and covered walkways
• Strips of light in the floor, ceiling or wall

Read more
Access product brochure PDF
see the next product see the previous product

5637 - Opera (Outdoor lighting) New

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    223 lm

Mounting type

  • Wall lights

Features

  • Weight
    480 gr

Options of luminous effects

  • Non adjustable

Power supply - Control

  • Cable length
    0.3m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI
  • 230V-Non dimmable 230V
    Integrated
    230V-Non dimmable

Material

  • Anodised glazed aluminium
  • Vandalism-proof organic glass

Mechanical strength - Waterproofness

  • Resists impacts up to IK10 20J
    IK10 20J
  • IP67 Tight for temporary immersion
    67

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
... Ajax content

Optic options available for the product: 5637 Opera

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.

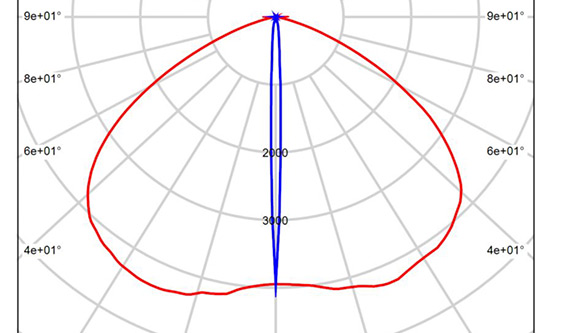

Access the photometric data
Close
Photometric data
... Ajax content

Optic options available for the product: 5637 Opera

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
  • Black anodised aluminium
  • 180 x 4° anti-glare silicone optical window
  • 316L stainless steel screws
  • Easy to install: factory-assembled cable-mounted connector(s) in input and input/output versions
  • Powder-coated paint on request
  • Option: trim plate untreated or painted (choice of RAL)
see more
Retrieve articles linked to this product on our LEC Expert blog through a click on this symbol:
