Product family » Button B

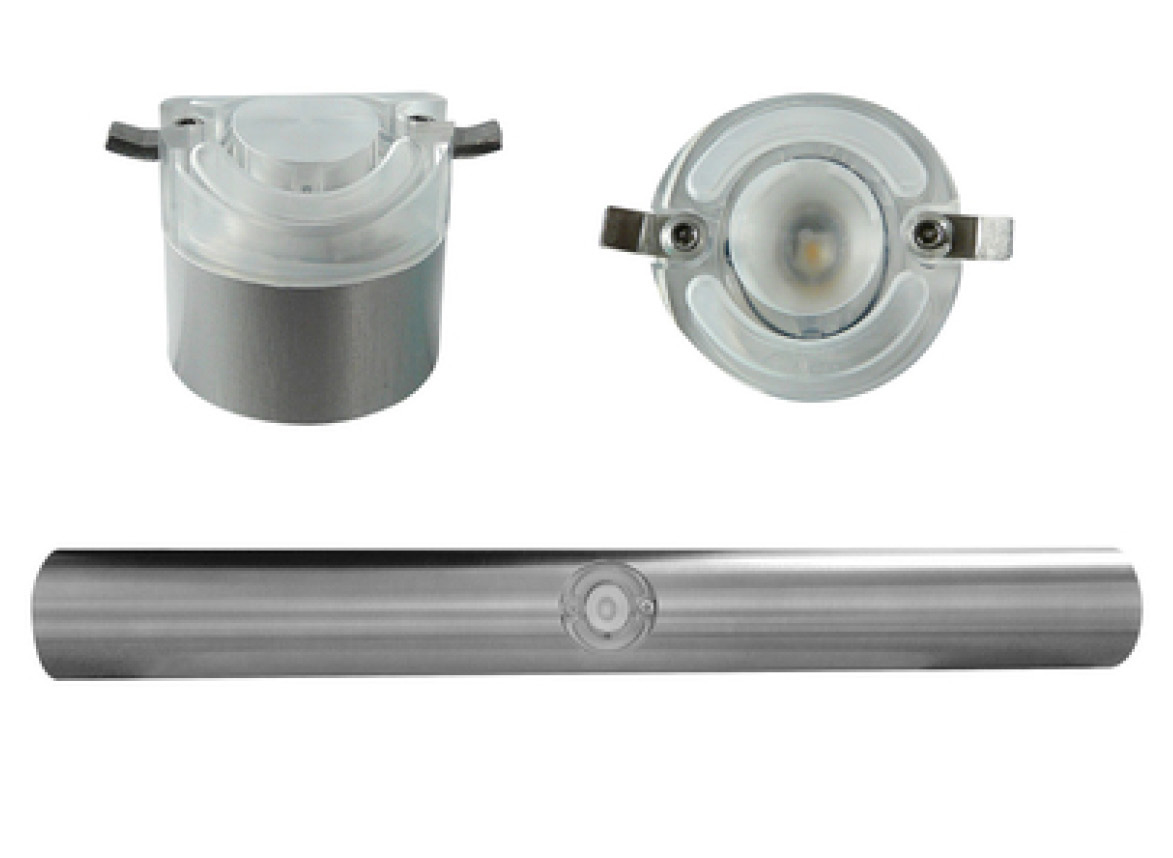

This recessed projector is designed to be integrated into a handrail of Ø 48 mm.

The handrail then becomes a discreet and powerful LED solution offering lighting for passage ways, stairs or terraces.

Complying with the Disabilty Discrimination Act (DDA), the handrail LED solution is equipped with a MB4 optic, offers a 40° to 50° horizontal tilt, and is embedded every 2 meters.

Read more
Access product brochure PDF
see the next product see the previous product

5643 - Button B (Outdoor lighting)

Eco Design Eco Design

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    150 lm

Mounting type

  • Handrails

Features

  • Weight
    70 gr

Options of luminous effects

  • Non adjustable
  • Beam with various openings
  • Transparent dome (optional)

Power supply - Control

  • Cable length
    0.2 m
  • 24 V power supply 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Resists impacts up to 20 joules (IK10)
    20
  • IP67 Tight for temporary immersion
    67

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
... Ajax content

Optic options available for the product: 5643 Button B

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.

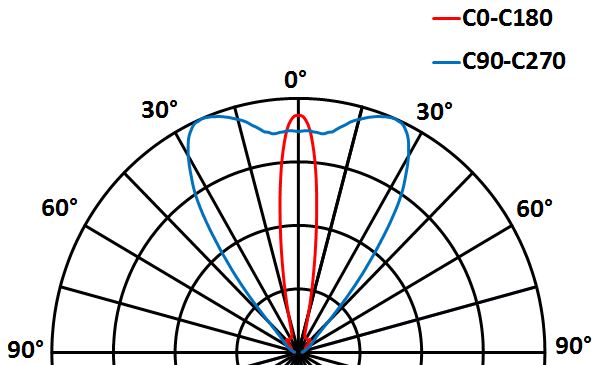

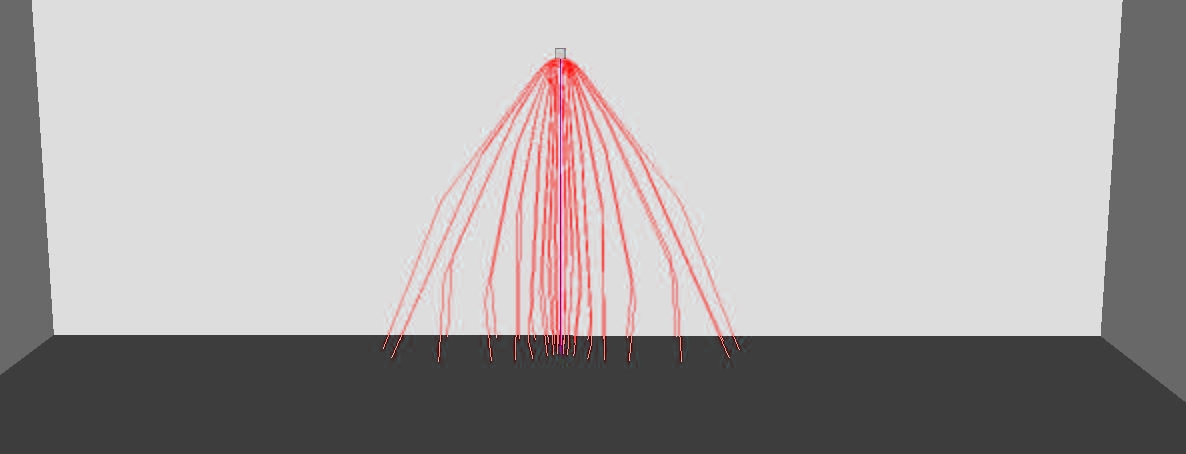

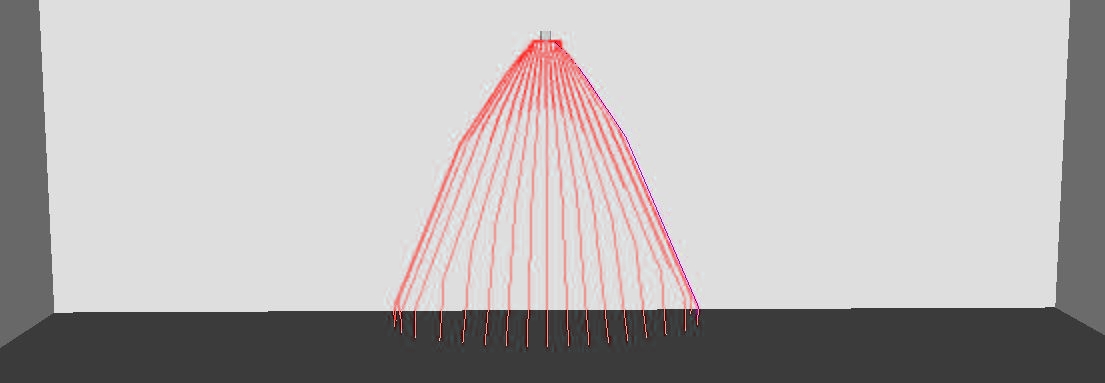

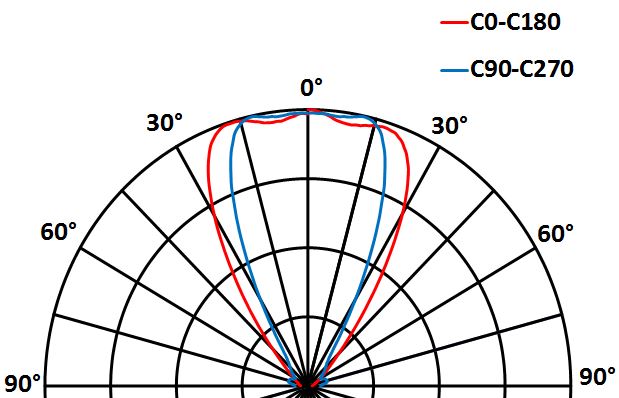

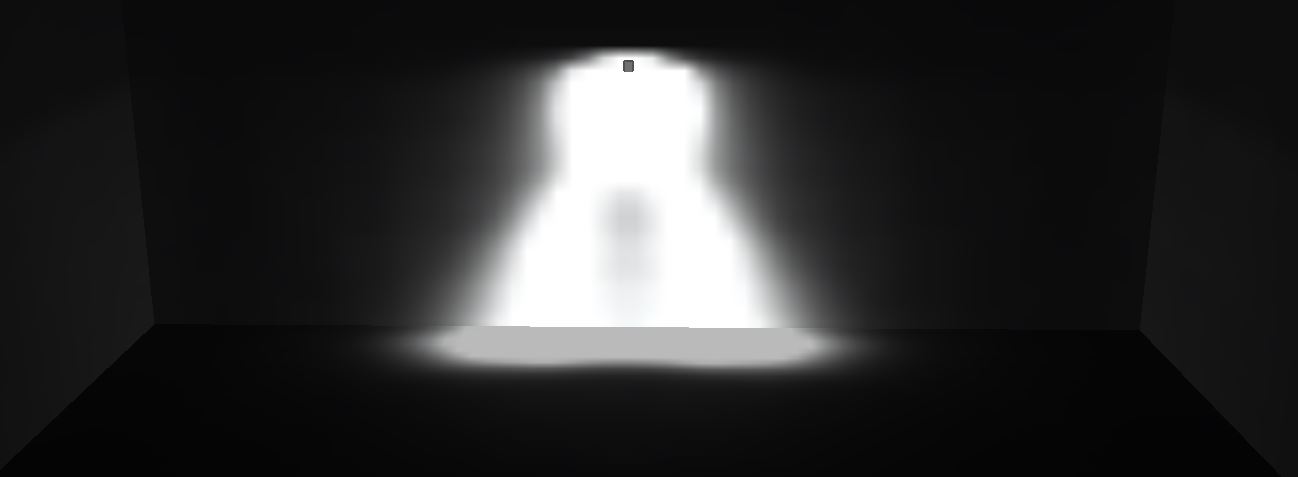

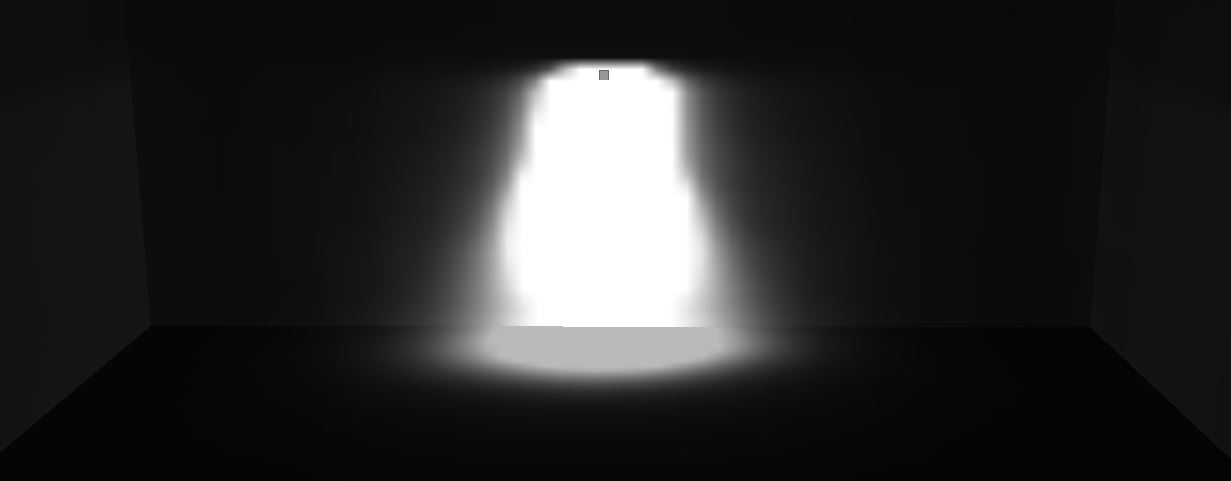

Access the photometric data
Close
Photometric data
... Ajax content

Optic options available for the product: 5643 Button B

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

- Embedded organic glass window
- Anodised aluminum projector to be embedded into Ø 35 mm
- Delivered with two 20-cm long wires to connect to the main cable inside the handrail, with provided connectors

Accessories:
- 50 cm-long handrail tube already drilled in the middle (5643E48-1U)
- 3 m-long handrail tube with smooth or bespoke drilling (5643E48-n)

WARNING: handrails used for DDA application must have a Ø between 25 and 50 mm.

see more
Retrieve articles linked to this product on our LEC Expert blog through a click on this symbol:
