LEC
Product family » Lima

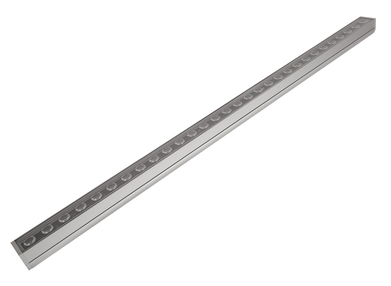

Orientable linear LED spotlight, surface mounted, for uniform illumination of very high walls and facades. Its trapdoor compartment hides cabling and connectors.



APPLICATIONS:

  • Highlight architectural features,
  • Facade, monument lighting
  • Continuous line
  • Tree and vegetation uplighting
  • Direct or indirect lighting of public space
Read more
Access product brochure PDF
see the next product see the previous product

5683 - Lima (Outdoor lighting)

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    3568 lm

Mounting type

  • Wall lights

Features

  • Weight
    2500 gr

Options of luminous effects

  • RGBW option
  • Adjustable on 1 axis
  • Rotating beam
  • Beam with various openings
  • Transparent flat window
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1 m
  • 230V-Non dimmable 230V
    Integrated
    230V-Non dimmable
    ,
    230V-0/10V
    ,
    230V-DMX
    ,
    230V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof, UV-proof, polycarbonate window

Mechanical strength - Waterproofness

  • Resists impacts up to IK10 20J
    IK10 20J
  • IP67 Tight for temporary immersion
    67

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
RGBW option available, please contact us.
... Ajax content

Optic options available for the product: 5683 Lima

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Access the photometric data
Close
Photometric data
RGBW option available, please contact us.
... Ajax content

Optic options available for the product: 5683 Lima

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

Length = 485 mm

  • Colourless anodised aluminium body
  • Vandalproof organic glass window
  • 316L Stainless steel screws
  • Thermolacquered paint on request
  • 3 mounting pads available 2 versions (15cm or 30cm) and one version for belt-courses
  • RGBW options available
see more

Projects featuring this luminaire

Retrieve articles linked to this product on our LEC Expert blog through a click on this symbol:
