Project ›› Court House in Montpellier

see the next project see the previous project
product(s) 4040 - Luminy 4 4060 - Luminy 6 5655 - Lignon

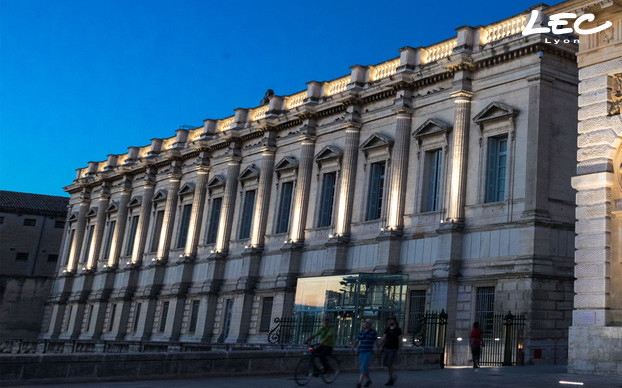

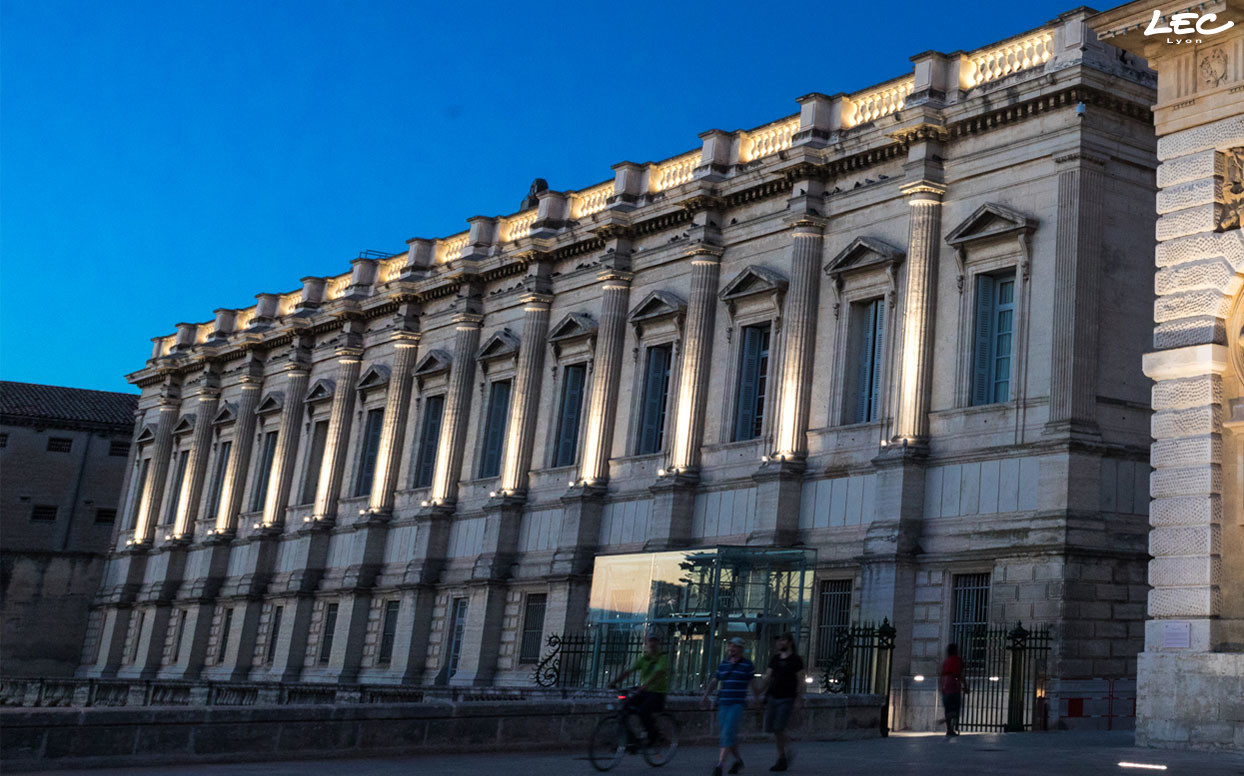

Court House in Montpellier Overall view
  • working since
  • 2016

Up-lighting of the Court House :

- 24 projectors 4040-Luminy 4 in neutral white with a 6° optic, and the Luminy CAP, are fixed on the base of the 12 columns of the Court House;
- 4 projectors 4040-Luminy 4 in warm white with a 10° and 36° optics light up from the top to down statues located under the marquee ;
- 41,60 linears meters 5655-Lignon (26 light bars of 1,6 m) in neutral white at 120° are fixed on the edge of the upper cornices to up-light them;
- 2 projectors 4060-Luminy 6 in neutral white with a 6° optic are fixed behind the cornices, at roof level of the building's wings (1 on each side) and light up the pediment (in crossfire), and 2 others with a 10° optic light up the stepwell (in crossfire).

Specifier and lighting designer: Sylvie Sieg
Installer: SPIE
Photos: ©Camille Lafon for LEC

see more
Contact us
5655 - Lignon
5655 - Lignon
Mounting type Wall lights

Light bar can be ordered to length (max. 2m) for individual installation or as a continuous line for uninterrupted lighting.
The product's polycarbonate and aluminium profiles are clipped together to allow for every possible product orientation. Cable output at the end of the fitting. Slightly diffusing polycarbonate window to avoid glare. Built-in groove to accommodate nuts to adjust the position of the mounting brackets.
Multiple types of installation possible: cornice, wall, handrail, integration into street furniture, etc. A wide choice of mounting brackets are also available.
Minimum length = 100mm



APPLICATIONS:

  • Highlight architectural features,
  • Lighting from a cornice
  • Lighting under benches or handrails
  • Continuous line
See the product
  • <p>41,60 linears meters 5655-Lignon (26 light bars of 1,6 m) in neutral white at 120° are fixed on the edge of the upper cornices.</p>

    41,60 linears meters 5655-Lignon (26 light bars of 1,6 m) in neutral white at 120° are fixed on the edge of the upper cornices.

LEC Expert

» Montpellier’s Court House (Palais de Justice), harmony between lighting designer and LED manufacturer
Download Project data sheet (PDF)
