Project ›› Place and fountain des Jacobins, Lyon

see the next project see the previous project

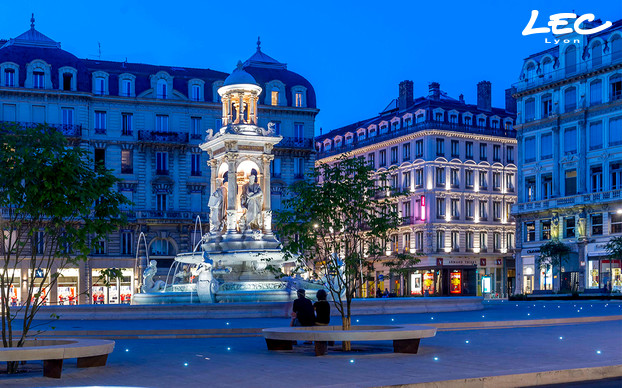

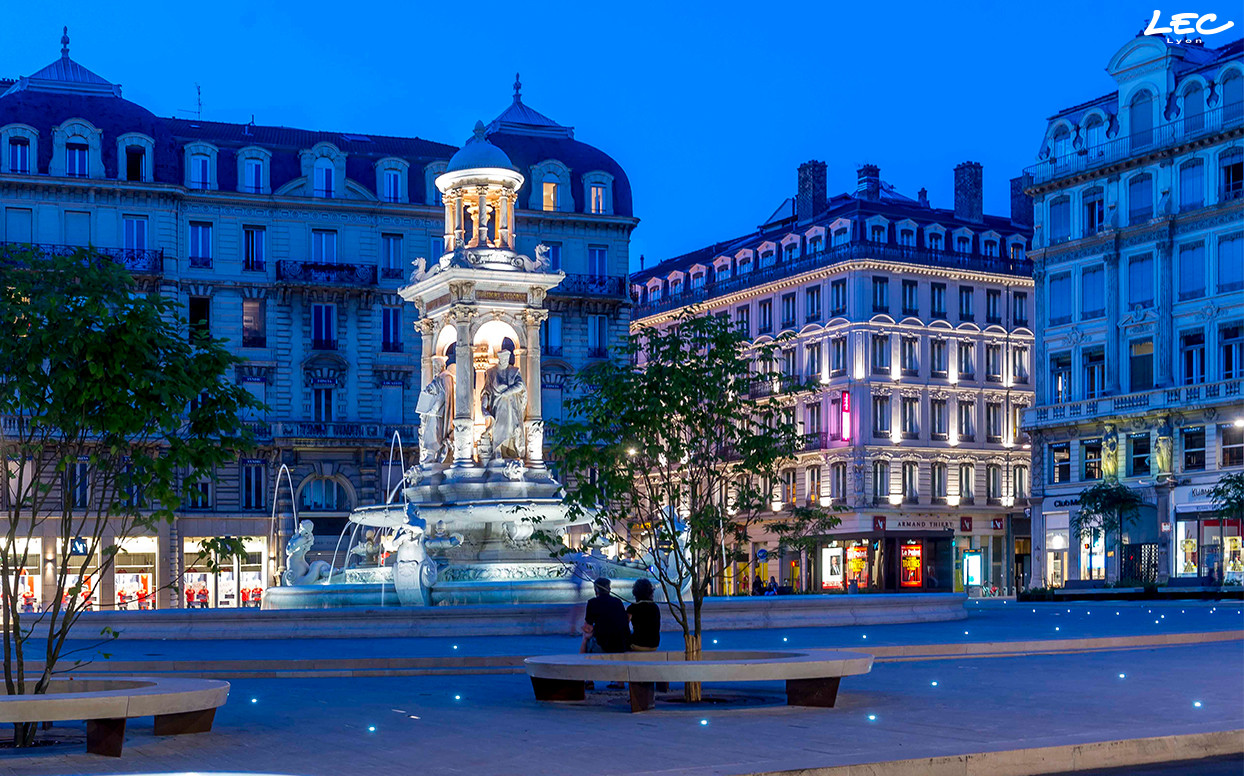

Place and fountain des Jacobins, Lyon Overall view
  • working since
  • 2013

The place and the fountain des Jacobins in Lyon's peninsula have been freshly renovated in June 2013.
The Ville de Lyon and the Atelier Roland Jeol required a specific light enhancement using LEDs for the new living area.

For the square:
> 191 recessed 2-screws superwatt spotlights [1750ADSY-BW - Bourgogne Ø 44 mm 24 V DC 1 in white] placed all around the fountain on the ground in a snail shape.

Around the fountain:
> 12 specific 3 LEDs adjustables spotlights [1830 - JACOBIN 10° beam 24VDC Ø 70 mm h 29 mm 3 superwatts 1W warm white,
> 8 linear LEDs with 36° lens 5635-LIGNY 24 VDC, 30 LEDs/m 3W switching warm white/amber = 4 x 0.8m + 4 x 0.4m, 4 linear LEDs with 10° lens [5635-CE30-10: - LIGNY 24 VDC, 30 leds/m 3W warm white = 4 x 0.8m]

Inside the fountain (immersion):
16 special adjustable and submersible stainless steel LEDs spotlights models



Specifiers for the Fountain:
Project owner: Ville de Lyon / Contracting authority: Ville de Lyon / Light designer: Atelier Roland Jeol and Ville de Lyon

Specifiers for the Place:
Project owner: Grand Lyon / Contracting authority: Landscape desiger Jacqueline Osty / Light designer: Atelier Roland Jeol / Architect: Lionel Orsini / Engineering & Technical Office: GIRUS

Photo credits: Xavier Chabert



see more
1830 - Lucerne
1830 - Lucerne
Mounting type Wall lights

«Medium» version in the round flush recessed raking light range.

APPLICATIONS:

  • Highlight architectural features, street furniture, landscapes...
  • Surface mounted lighting for cycle path, pedestrian path, stairs
  • Squares and public places
See the product
  • <p>12&nbsp;bespoke 3 LEDs adjustables spotlights from the 1830-Lucerne family range with 10&deg; beam 24VDC &Oslash; 70 mm h 29 mm 3 superwatts 1W warm white</p>

    12 bespoke 3 LEDs adjustables spotlights from the 1830-Lucerne family range with 10° beam 24VDC Ø 70 mm h 29 mm 3 superwatts 1W warm white
