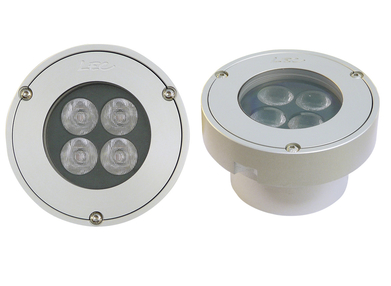

1830 - Lucerne (Outdoor lighting)

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    892 lm

Mounting type

  • Ground flush recessed fittings
  • Ground recessed fittings
  • Pavements sides

Features

  • Weight
    325 gr

Options of luminous effects

  • 20° deflected beam (option)
  • Non adjustable
  • Beam with various openings
  • Frosted dome (optional)
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1m/15cm
  • 24 V power supply 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Marine anodised cast aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Withstands random all vehicles traffic
  • Resists impacts up to 60 joules (IK10)
    60
  • IP68 Tight for extended immersion
    68

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
RGB options available, please contact us.
... Ajax content

Optic options available for the product: 1830 Lucerne

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Access the photometric data
Close
Photometric data
RGB options available, please contact us.
... Ajax content

Optic options available for the product: 1830 Lucerne

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
  • Anodised aluminium body
  • Vandalproof organic glass window
  • 316L Stainless steel screws
  • Flush-recessed (except 1830K and 1830D)
  • 3 possible recess plate dimensions
  • Withstands occasional traffic from all kinds of vehicles (except 1830K)
  • RGB options available
