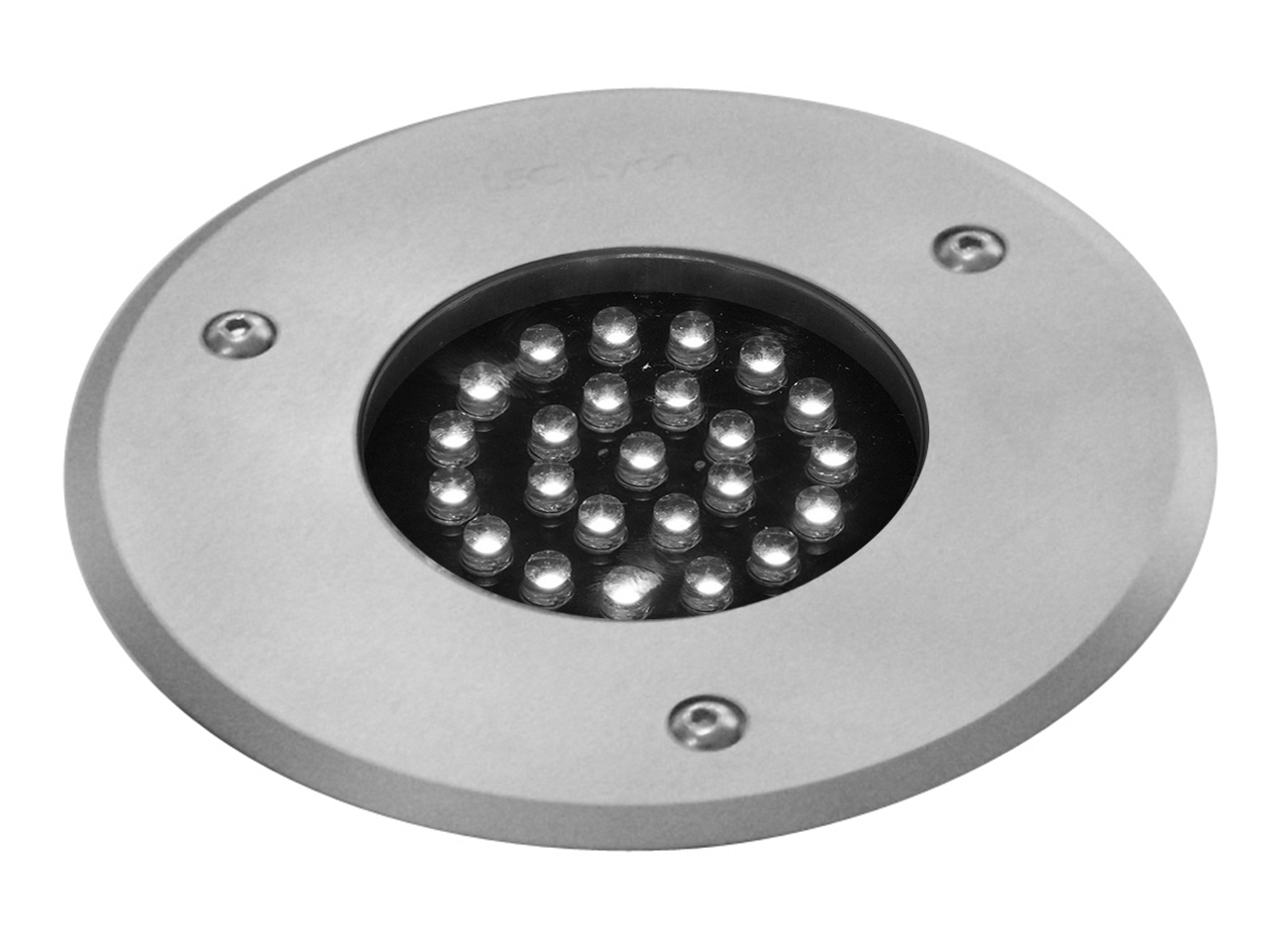

1830K - Lucerne (Marker-lighting)

Application

  • Indicator lighting
  • Marker-lighting

Mounting type

  • Ground recessed fittings

Features

  • Weight
    450 gr

Options of luminous effects

  • Non adjustable
  • Transparent flat window
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1m/15cm
  • 24 V power supply 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Marine anodised cast aluminium
  • 316L Stainless steel
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Resists impacts up to 60 joules (IK10)
    60
  • IP68 Tight for extended immersion
    68

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
RGB options available, please contact us.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
  • Body: cast anodised aluminium, diameter 100 mm
  • Window: polycarbonate UV resistant, vandal proof, scratch proof, M2, thickness 8 mm
  • Numerous lenses
  • Open embedding cases: height 56 mm (1830E), or with extension cable h 280 mm, cylindrical (1830EL) or conic (1830E280)
  • Shut embedding cases used as connecting boxes, diameter 102 mm, height 100 mm (1830EBV or 1830EBL)

In-ground recessed LED marker-light with no protusion:

  • Dimensions: Ø 100 mm
  • In-ground flush recessed marker-light to be embedded in its embedding case
  • Stainless steel flange
  • Control system options: DMX (external) or AUTODMX (integrated)
  • Applications : Ground marking for pathways
