LEC
see the next product see the previous product

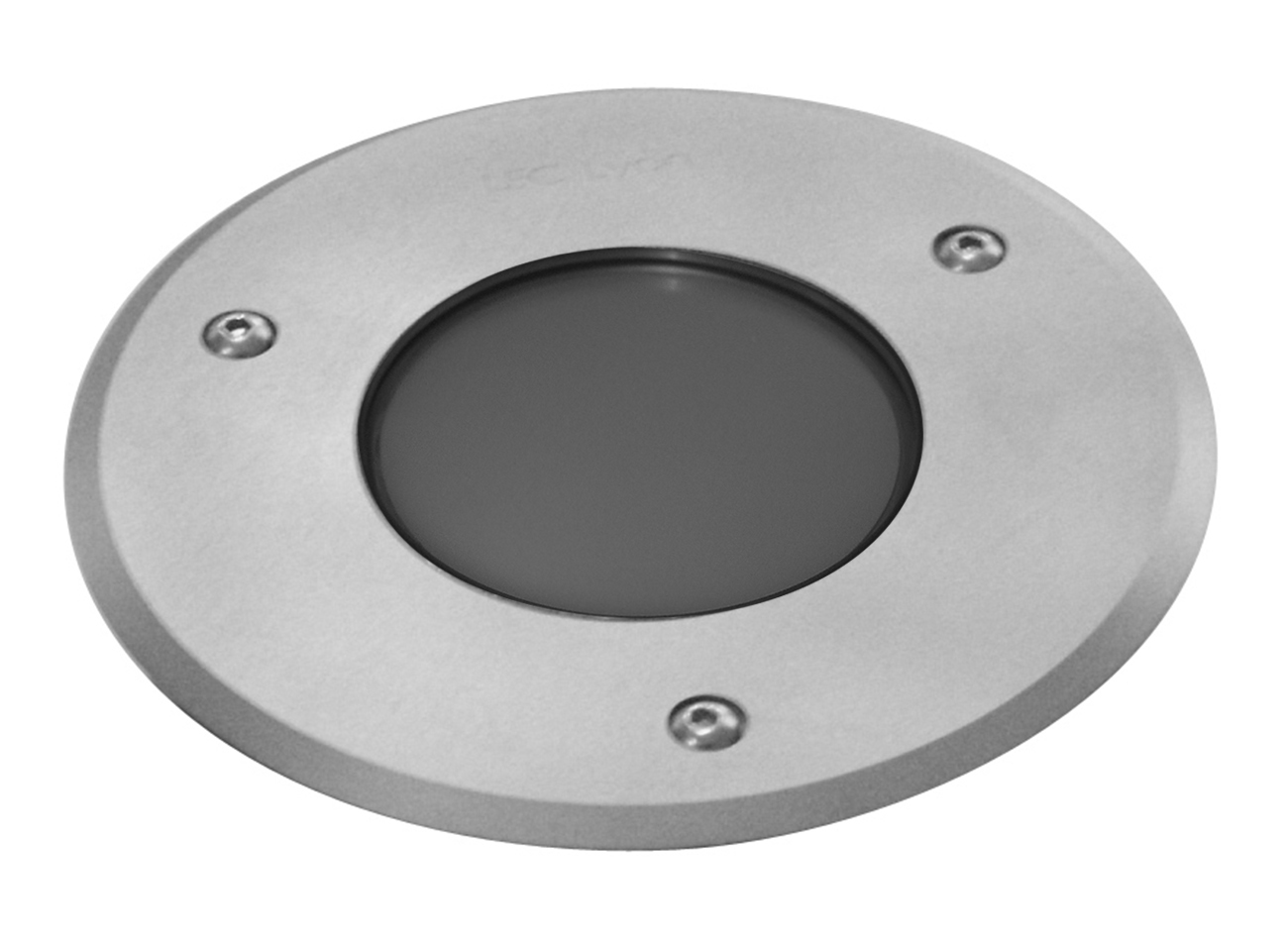

1830KD - Lucerne (Marker-lighting)

Application

  • Indicator lighting
  • Marker-lighting

Mounting type

  • Ground recessed fittings

Features

  • Weight
    450 gr

Options of luminous effects

  • RGB options
  • Adjustable on 1 axis
  • Frosted dome (optional)
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1 m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI
  • 230V-Non dimmable 230V
    Integrated
    230V-Non dimmable

Material

  • Anodised glazed aluminium
  • 316L Stainless steel
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Resists impacts up to IK10 60J
    IK10 60J
  • IP68 Tight for extended immersion
    68

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
RGB options available, please contact us.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

Projector equipped with a stainless steel flange of Ø 120 mm with a 4 mm thick protusion.
The flange hides recess plate imperfections.
Dome
This projector 1830K does not withstand occassional vehicles driving.

  • Anodised aluminium body
  • Vandalproof organic glass window
  • 316L Stainless steel screws
  • Flush-recessed (except 1830K and 1830D)
  • RGB options available
