Product family » Lucerne

«Medium» version in the round flush recessed raking light range. Choice of lighting effects for customised LED marker-lighting.

APPLICATIONS:

  • Decorative or safety marker-lighting
  • Installed at regular intervals to mark a path, cycle path, stairs
  • Public space enhancement
Read more
  • Indicator lighting
    • 11 product(s) in marker-lighting
1830
Marker-light This option does match with your criteria
1830H
Uniform This option does match with your criteria
1830M
LEDs angled over mirror This option does match with your criteria
1830D
Frosted dome This option does match with your criteria
1830CYC
Specific signage This option does match with your criteria
1830XX
Specific signage This option does match with your criteria
1830PMR
Specific signage This option does match with your criteria
1830K
Stainless steel flange This option does match with your criteria
1830KH
Uniform + stainless steel flange This option does match with your criteria
1830KM
LEDs angled over mirror + stainless steel flange This option does match with your criteria
1830KD
Stainless steel flange + dome This option does match with your criteria
  • Lighting
    • 2 product(s) in lighting
1830
Projector This option does match with your criteria
1830K
Stainless steel flange This option does match with your criteria
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

1830PMR - Lucerne (Marker-lighting) New

Application

  • Indicator lighting
    • Marker-lighting

Mounting type

  • Ground flush recessed fittings
  • Ground recessed fittings
  • Pavements sides

Features

  • Weight
    290 gr

Options of luminous effects

  • RGB options
  • Adjustable on 1 axis
  • Flat homogeneous window (optional)
  • Colour control system (optional)

Power supply - Control

  • Cable length
    1 m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI
  • 230V-Non dimmable 230V
    Integrated
    230V-Non dimmable

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Withstands random all vehicles traffic
  • Resists impacts up to IK10 60J
    IK10 60J
  • IP68 Tight for extended immersion
    68

Downloads

Download Standard product datasheet (pdf)
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
RGB options available, please contact us.
Reset filters
Access the file
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images

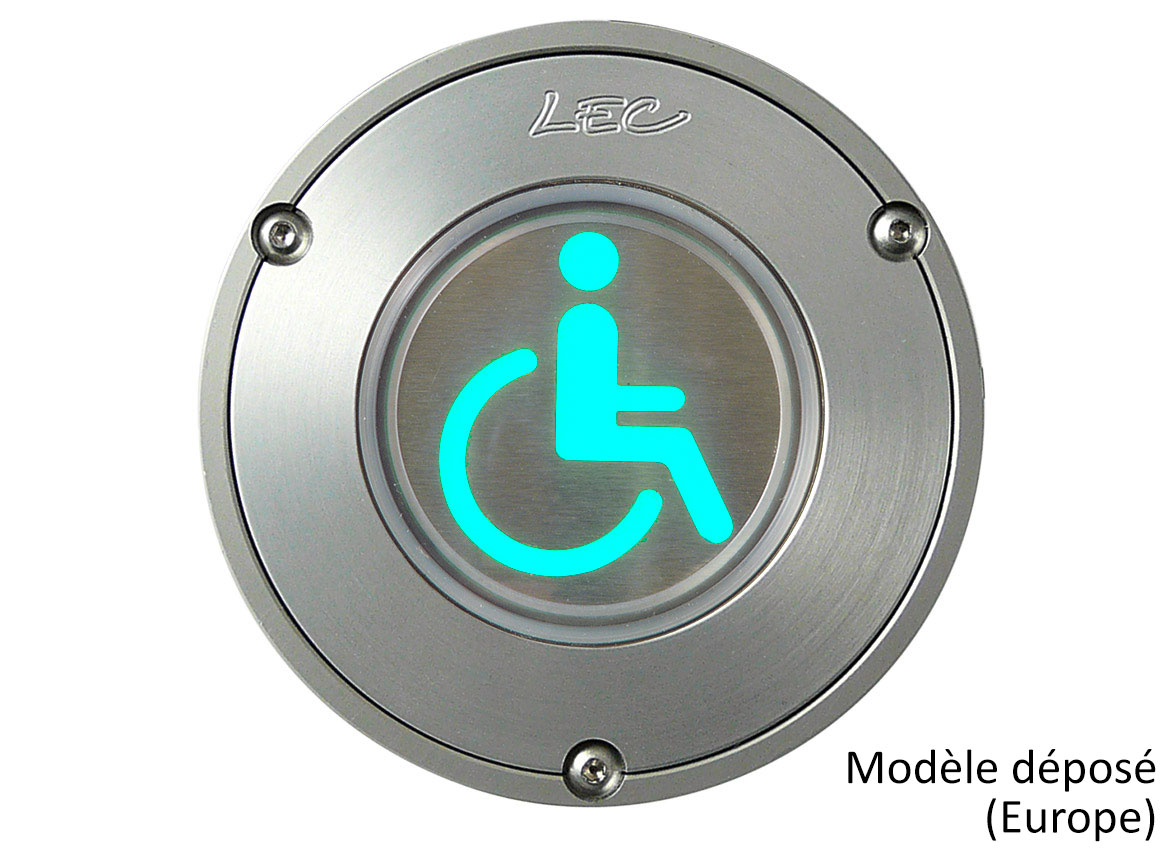

Beacon with specific PRM area signage
LEC offers custom options

  • Anodised aluminium body
  • Vandalproof organic glass window
  • 316L Stainless steel screws
  • Flush-recessed (except 1830K and 1830D)
  • Withstands occasional traffic from all kinds of vehicles



see more
