LEC
Product family » Palais Royal

LED spotlight surface-mounted on roadways for raking or extensive illumination.



APPLICATIONS:

  • Cycle paths and pedestrian paths lighting
  • Roadway lighting
  • Public space lighting
  • Low facades lighting
  • Footbridges and piers
Read more
Access product brochure PDF
see the next product see the previous product

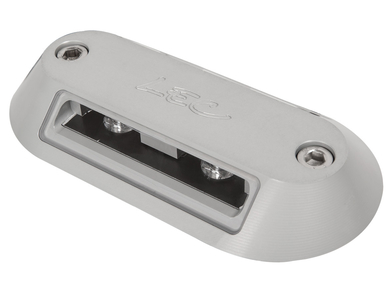

1843 - Palais Royal (Outdoor lighting)

Application

  • Lighting
  • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    1605 lm

Mounting type

  • Ground recessed fittings
  • Pavements sides

Features

  • Weight
    610 gr

Options of luminous effects

  • Non adjustable
  • Paralell beam
  • Beam with various openings
  • Transparent flat window

Power supply - Control

  • Cable length
    1 m
  • Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Protrusion which is an obstacle for 2-wheels vehicles and pedestrians. The unit should be permanently lit to draw attention to the obstacle.
  • Withstands random all vehicles traffic
  • Withstands low-speed light vehicles traffic
  • Certified in compliance with European Standards 60598-2-22 for emergency lighting units
  • Resists compression up to 8 tons
    8T
  • Resists impacts up to 60 joules (IK10)
    60
  • IP68 Tight for extended immersion
    68

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
... Ajax content

Optic options available for the product: 1843 Palais Royal

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Access the photometric data
Close

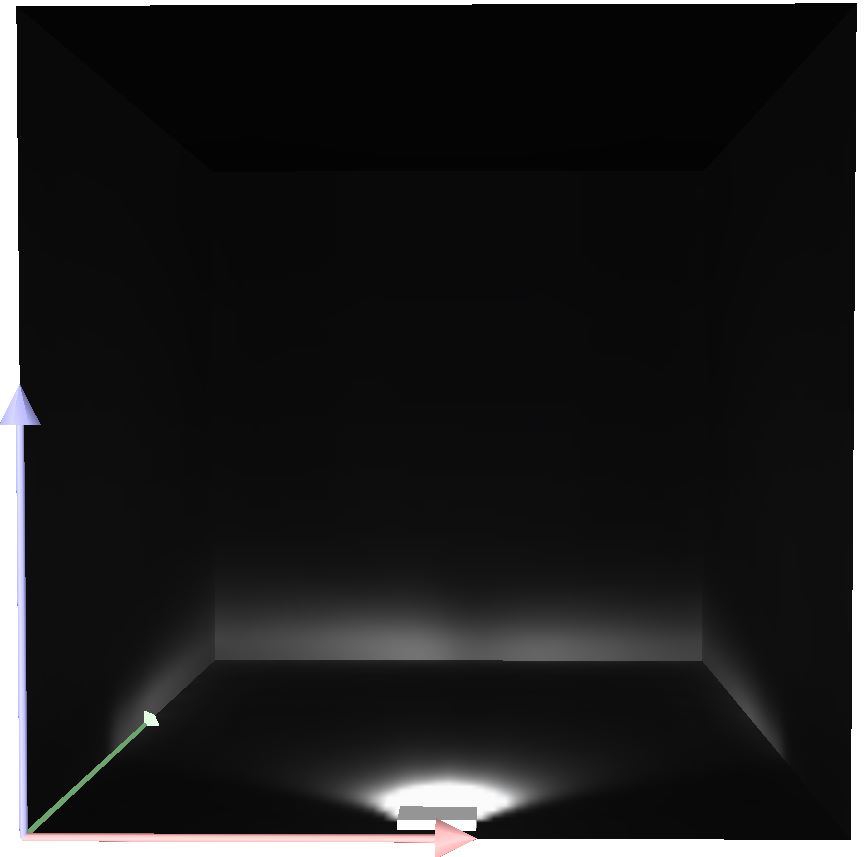

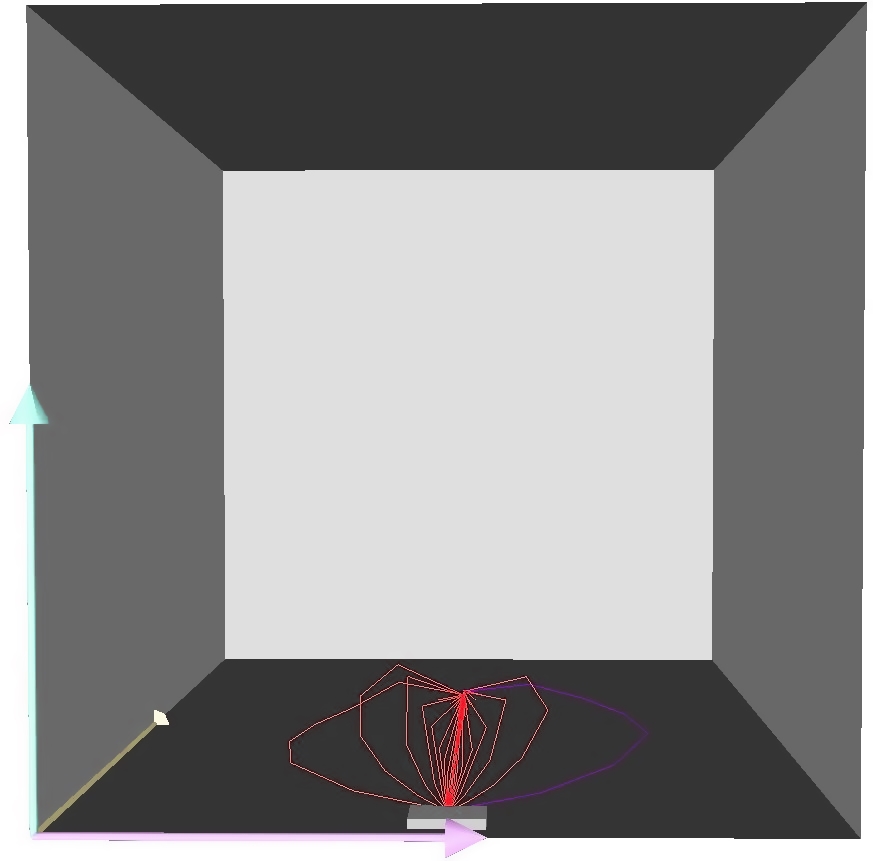

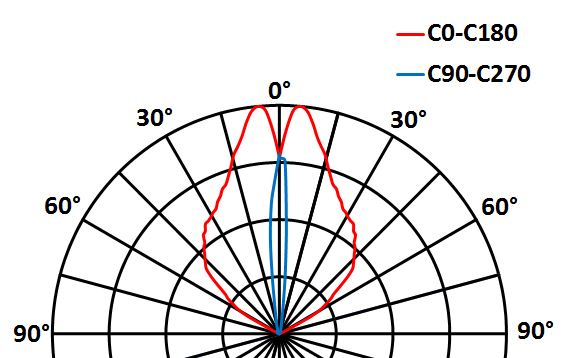

Photometric data
... Ajax content

Optic options available for the product: 1843 Palais Royal

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

Two-way directions.

  • Colourless anodised machined aluminium body
  • Vandalproof organic glass window
  • 316L Stainless steel screws
  • Mounted directly on roadway or to recess plate
  • Withstands occasional traffic from all kinds of
see more
