Product family » Saint Raphael

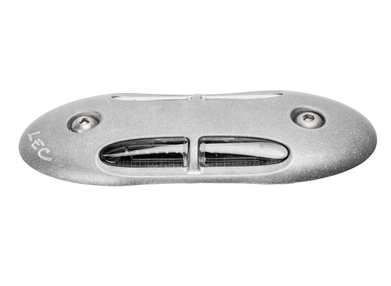

Bi-directional LED marker-light mainly designed for safety paths lighting to pedestrians in underground car parks.

Designed bearing ergonomic criteria in mind, it withstands the passing of light vehicles and trolleys, its smooth shape helps reducing the luminaire’s obstacle for pedestrians.

Highly technical, this product also blends harmoniously into the environment and complies with the latest EU standards.

Read more
Access product brochure PDF
see the next product see the previous product

1844 - Saint Raphael (Marker-lighting)

Application

  • Indicator lighting
  • Marker-lighting

Mounting type

  • Ground recessed fittings

Features

  • Weight
    360 gr

Options of luminous effects

  • Non adjustable
  • Paralell beam
  • Transparent dome (optional)

Power supply - Control

  • Cable length
    1 m
  • 24 V power supply 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Marine anodised cast aluminium

Mechanical strength - Waterproofness

  • IP69K pressure water spray (previous registration)
  • Protrusion which is an obstacle for 2-wheels vehicles and pedestrians. The unit should be permanently lit to draw attention to the obstacle.
  • Withstands low-speed light vehicles traffic
  • Certified in compliance with European Standards 60598-2-22 for emergency lighting units
  • Resists compression up to 2,5 tons
    2,5T
  • Resists impacts up to 60 joules (IK10)
    60
  • IP68 Tight for extended immersion
    68

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

- Cast aluminium body 17 mm thick
- 2 polycarbonate windows V2
- Resistance to glow wire test: UL94 GWFI : 960°
- Luminous intensity above 7 candelas on a 15 ° angle on both sides of
the walking axis

Accessories:
- Embedding plate for coupling sleeve (1844EA250)
- Stainless hammer-in rawplug M10x40 for concrete + tool
