LEC
Product family » Savoie

This model was especially developed for way guiding in tunnels.

Its ergonomic shape was especially designed to avoid the accumulation of dirt layers on the cap and to provide an easy cleaning.

Components are resistant to the corrosive environment of the tunnel. They are fire retardant classified UL 94 V2, ISO CEI60695-2-1: test of incandescent wire at 960° and with no halogen.

Tilted LEDs within its axis (1810A), recommended for inter-distanced blue LEDs.

Read more
Access product brochure PDF
see the next product see the previous product

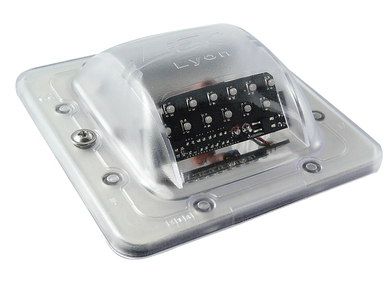

1810 - Savoie (Marker-lighting)

Application

  • Indicator lighting
  • Marker-lighting

Mounting type

  • Wall lights

Features

  • Weight
    250 gr

Options of luminous effects

  • Non adjustable
  • Inclined beam
  • Paralell beam
  • Transparent flat window

Power supply - Control

  • Cable length
    1 m
  • 24 V power supply 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Vandalism-proof, UV-proof, polycarbonate window

Mechanical strength - Waterproofness

  • IP69K pressure water spray (previous registration)
  • Certified in compliance with European Standards 60598-2-22 for emergency lighting units
  • Resists impacts up to 40 joules (IK10)
    40
  • IP67 Tight for temporary immersion
    67

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

- Organic glass dimmer cap (112mm x 112mm x 34)
- 2 x 12 LEDs (other quantities upon request), emitting an opened luminous beam from an angle of 23° to 45° of the axis.

Fixing by sides ears (1810C)

see more

Projects featuring this luminaire

Retrieve articles linked to this product on our LEC Expert blog through a click on this symbol:
