Product family » Luminy 4

«Maxi» version in the Luminy spotlight range Installs on roads/floors, wall or poles with custom-adaptable accessories.



APPLICATIONS:

  • Architectural heritage enhancement
  • Landscape enhancement
  • Path lighting, lanes
  • Direct or indirect lighting of public space
Read more
  • Lighting
    • 3 product(s) in lighting
4040
This option does match with your criteria
4040M
Adjustable 3 axis This option does match with your criteria
4039
Optics 4° This option does match with your criteria
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

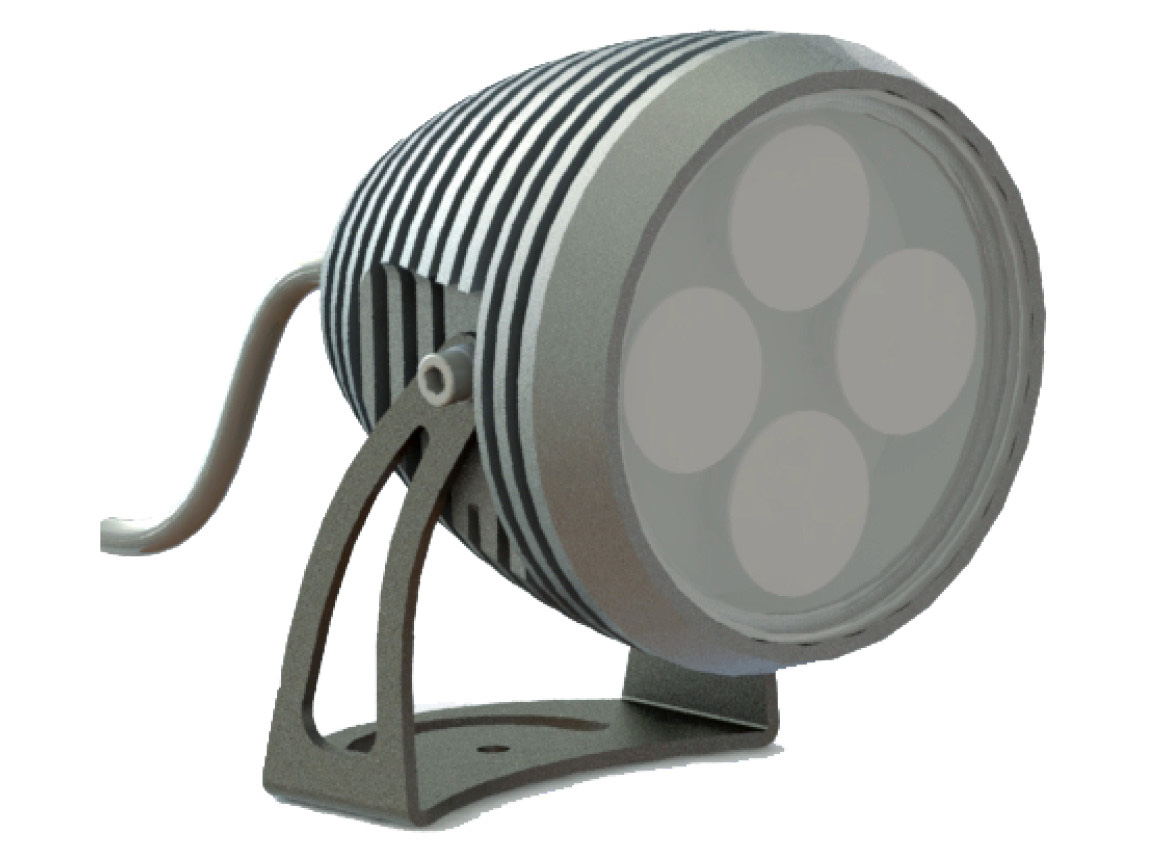

4039 - Luminy 4 (Outdoor lighting) New

Application

  • Lighting
    • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    1267 lm

Mounting type

  • Wall lights
  • Masts

Features

  • Weight
    1650 gr

Options of luminous effects

  • Adjustable on 2 axis
  • Rotating beam
  • Transparent flat window

Power supply - Control

  • Cable length
    1 m
  • 24V-Non dimmable 24V
    Integrated
    24V-Non dimmable
    ,
    24V-PWM
    ,
    24V-DMX
    ,
    24V-DALI
    Remote
    24V-0/10V

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Resists impacts up to IK10 20J
    IK10 20J
  • IP68 Tight for extended immersion
    68

Downloads

Download Standard product datasheet (pdf)
Download EU Declaration of conformity
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Please choose a type of optic
Reset filters
Access the file
... Ajax content

Optic options available for the product: 4039 Luminy 4

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.

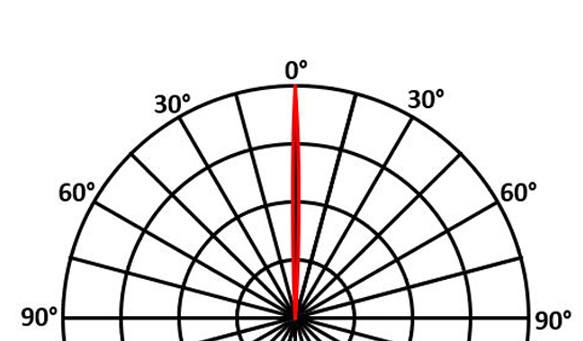

Polar data Simulation In position
4°
Access the photometric data
Close
Photometric data
Please choose a type of optic
Reset filters
Access the file
... Ajax content

Optic options available for the product: 4039 Luminy 4

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Polar data Simulation In position
4°
Confirm
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images

Optic 4°, monochromatic only

  • Colourless anodised machined aluminium body
  • Vandalproof organic glass window
  • 316L Stainless steel bracket and screws
  • Thermolacquered bracket on request
  • Optional light hood
  • RGBW options available
see more
