Product family » Luminy 4

«Maxi» version in the Luminy spotlight range Installs on roads/floors, wall or poles with custom-adaptable accessories.

APPLICATIONS:

Architectural heritage enhancement
Landscape enhancement
Path lighting, lanes
Direct or indirect lighting of public space

Lighting

4040

This option does match with your criteria

4040M

Adjustable 3 axis This option does match with your criteria

4039

Optics 4° This option does match with your criteria

Access product brochure PDF

See the products ranges synthesis New products Contact us

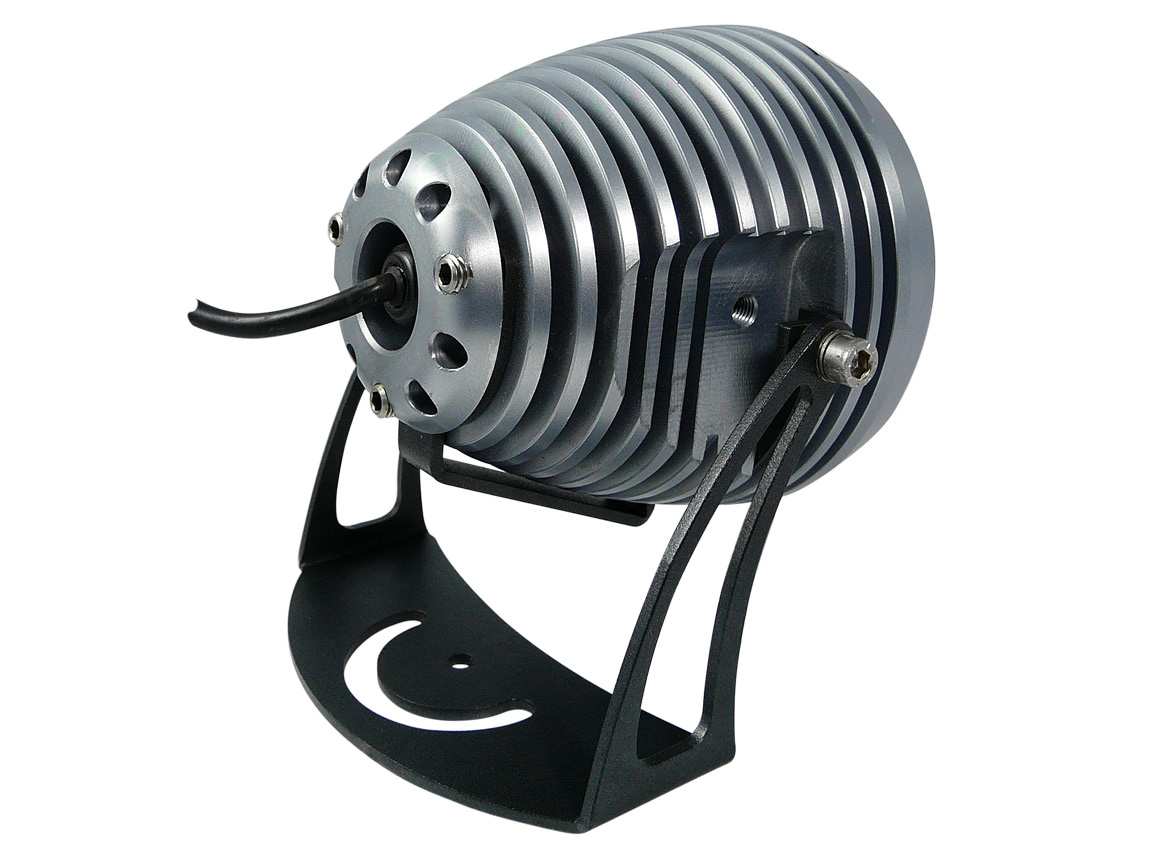

4040M - Luminy 4 (Outdoor lighting)

Application

Lighting

This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
Standard flux :
2676 lm

Mounting type

Wall lights
Masts

Features

Weight
1750 gr

Options of luminous effects

RGBW option
Adjustable on 3 axis
Rotating beam
Beam with various openings
Transparent flat window
Colour control system (optional)

Power supply - Control

Cable length
1 m
24V-Non dimmable

Integrated

24V-Non dimmable
,
24V-PWM
,
24V-DMX
,
24V-DALI

Remote

24V-0/10V
230V-Non dimmable

Integrated

230V-Non dimmable
,
230V-0/10V

Material

Anodised glazed aluminium
Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

Resists impacts up to 20 joules (IK10)
20
IP68 Tight for extended immersion
68

Downloads

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

Electricity consumption
Output
Maximum use temperature
Contact temperature

Configure now

Product configurator

Optic options available for the product: 4040M Luminy 4

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on your chosen optic, then confirm.

Polar data Simulation In position

10°

20°

36°

52°

77°

120°

130x25° (L1)

116x44° (L2)

40x10° (L4)

130x25° deflected 50° (L5)

116x44° deflected 36° (L6)

100x20° (L7)

Please contact us to develop optics suited to your photometric specs.

Bespoke

Access the photometric data

Photometric data

Optic options available for the product: 4040M Luminy 4

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on one or more chosen optics, then confirm.

I select all the optics.

Polar data Simulation In position

130x25° deflected 50° (L5)

116x44° deflected 36° (L6)

100x20° (L7)

Please contact us to develop optics suited to your photometric specs.

Bespoke

Confirm

Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

Adjustable on 3 axis

Colourless anodised machined aluminium body
Vandalproof organic glass window
316L Stainless steel bracket and screws
Thermolacquered bracket on request
Optional light hood
RGBW options available
